2.3 Removing Shipping Stands
NOTE:
Unless otherwise specified, discard stands, shipping material, and hardware. The removable stands are
painted yellow.

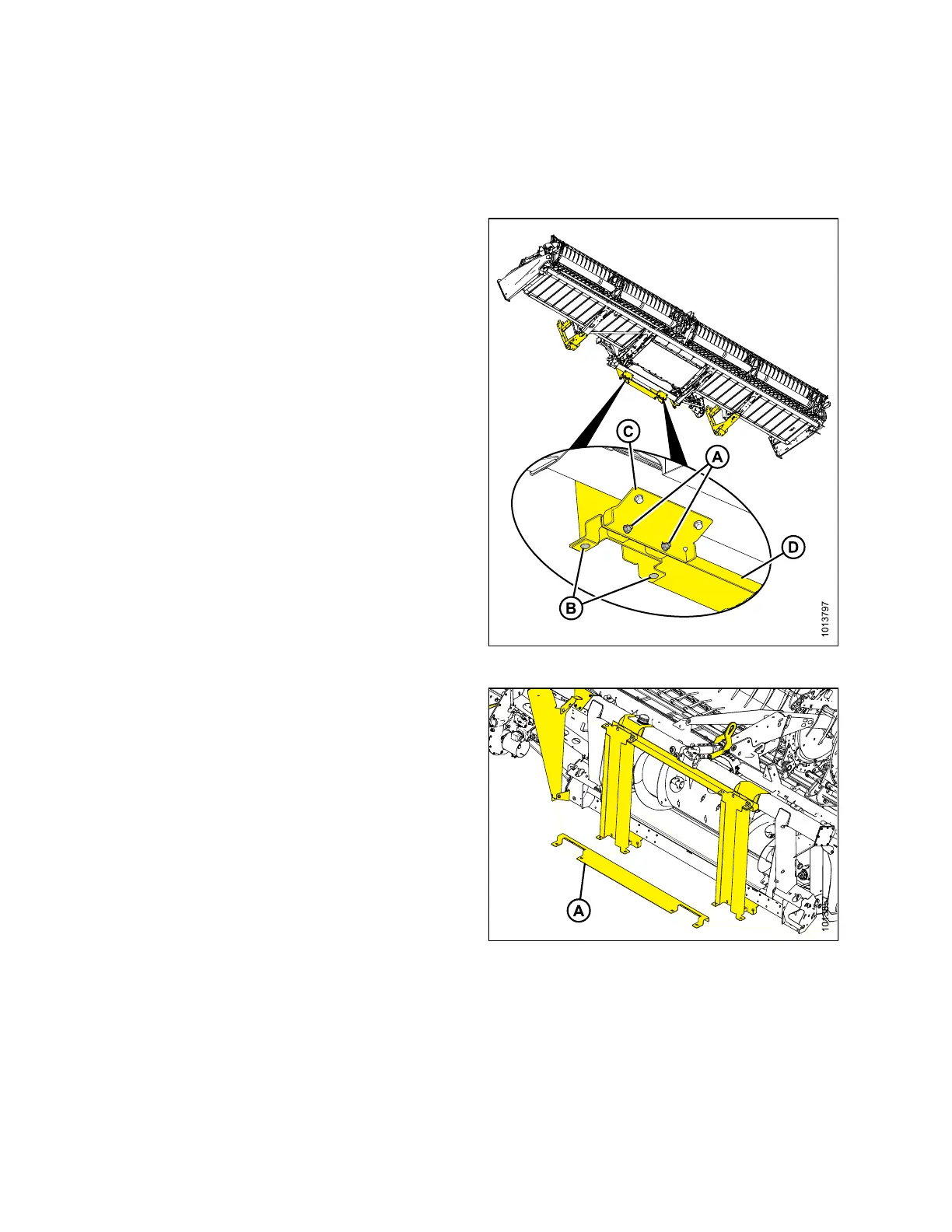

Figure 2.8: Fork Slider Channels
1. Remove two bolts (A) securing right fork slider channel
to brace (C).
NOTE:
To access bolts at lower fork slider brace, header must
be supported on 150 mm (6 in.) blocks. Refer to Step 4,
page 9.
2. Remove two bolts (B) securing right fork slider channel
to lower brace (D).
3. Repeat steps above for left side.
Figure 2.9: Lower Brace Removal
4. Remove bottom brace (A).
UNLOADING HEADER AND ADAPTER
