214325 84 Revision A
3.4.6 Removing Crop Dividers from Storage
Crop dividers are shipped attached to inboard side of endsheets. To remove crop dividers, follow these steps:
1. Open endshields. Refer to 3.4.5 Opening Endshield, page 83.

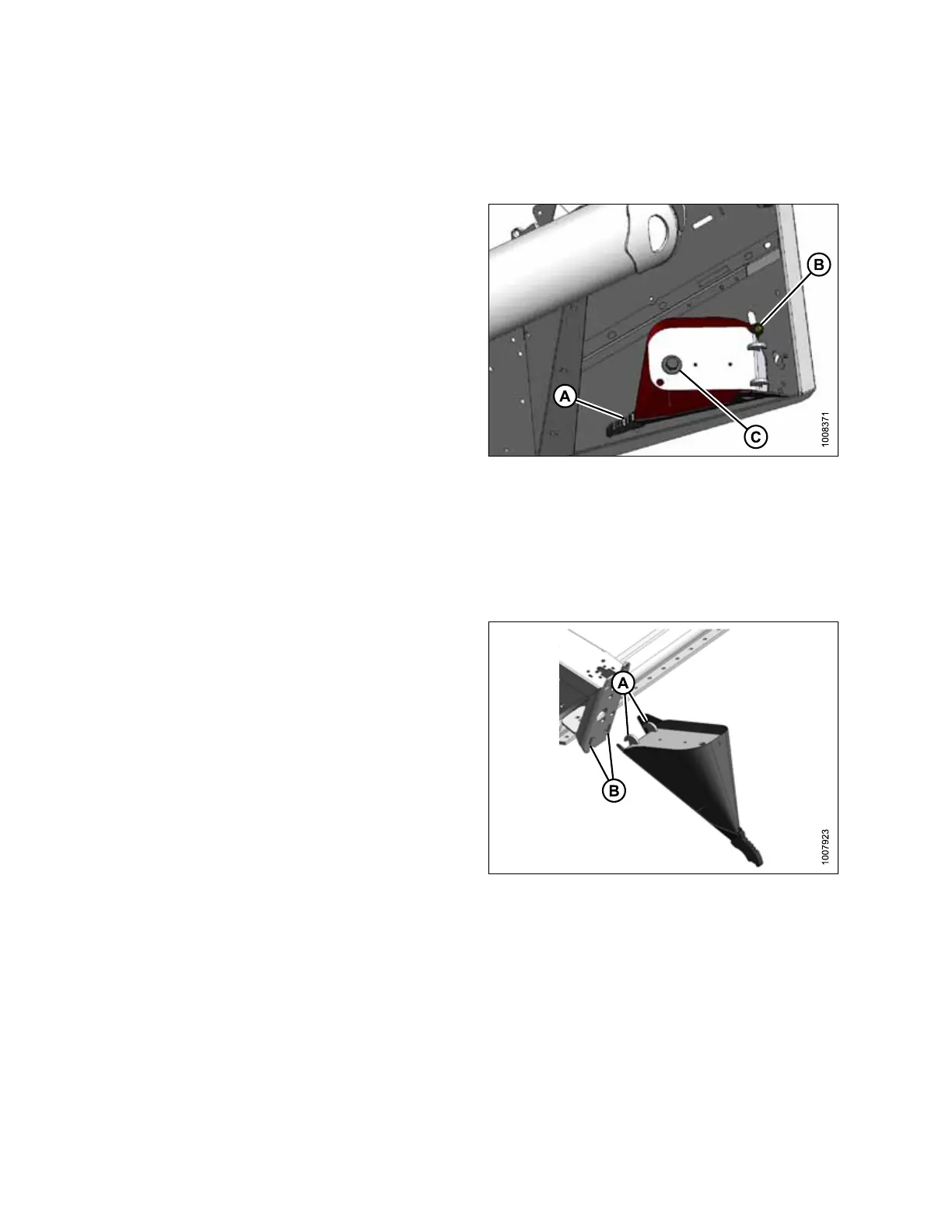

Figure 3.165: Crop Divider Storage
2. Support crop divider and remove shipping wire at front
end (A).
3. Remove bolt (B).
4. Remove bolt with washer (C) and retain for installation.
5. Repeat above steps for opposite end.
3.4.7 Installing Crop Dividers without Latch Option
NOTE:
If crop divider latch option was ordered with header, proceed to 3.4.8 Installing Crop Dividers with Latch Option,
page 86. Otherwise, complete the following procedure:
Figure 3.166: Crop Divider Installation
1. If not already open, open endshields. Refer to 3.4.5
Opening Endshield, page 83.
2. Position crop divider as shown by inserting lugs (A) into
holes (B) in endsheet.
ASSEMBLING HEADER AND ADAPTER
