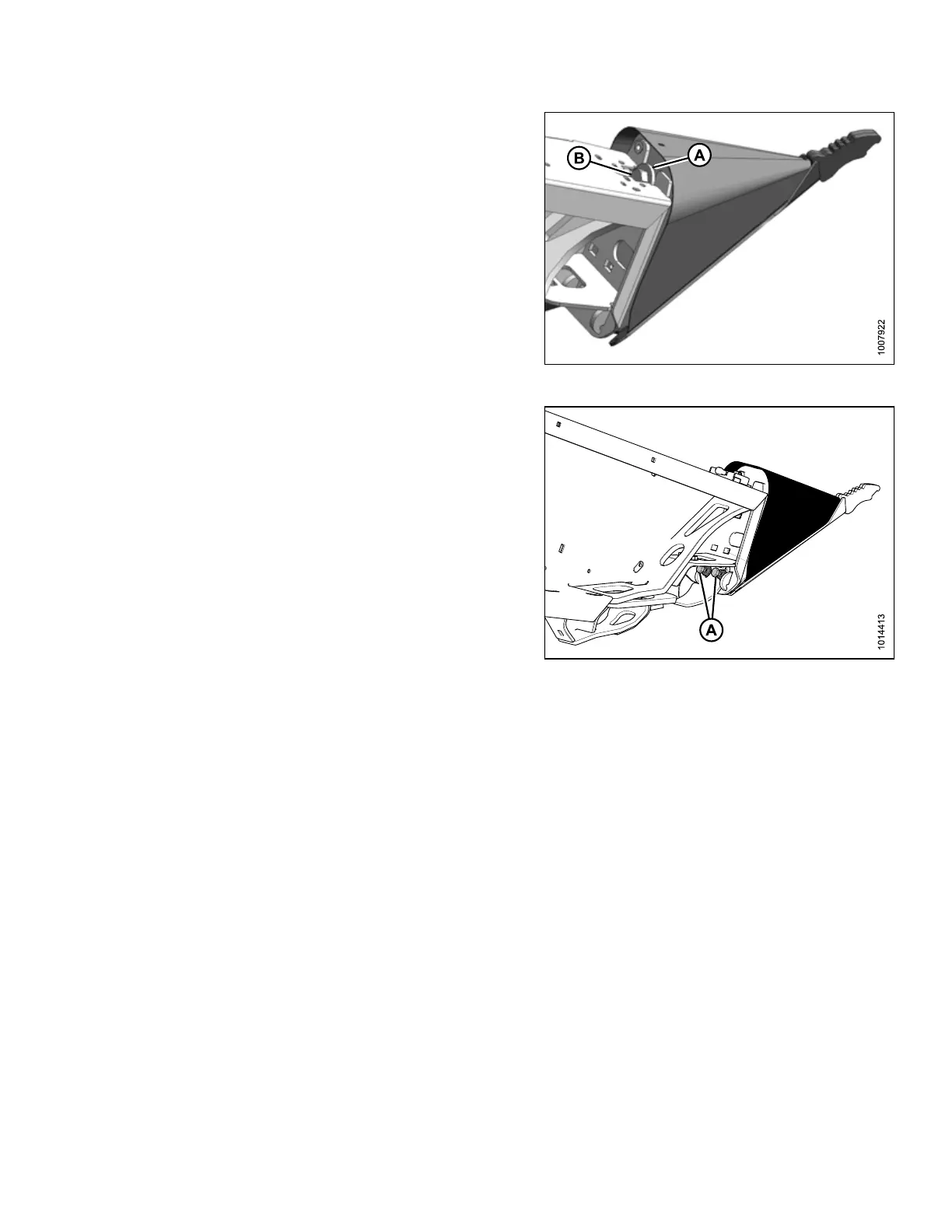

Figure 3.167: Crop Divider Installation
3. Lift forward end of crop divider and install bolt (B) and
special stepped washer (A) (step towards divider).
Tighten bolt.
Figure 3.168: Crop Divider Adjustment
4. Check that divider does not move laterally. Adjust
bolts (A) as required to tighten divider and remove
lateral play when pulling at divider tip.
5. Close endshield. Refer to 3.4.9 Closing Endshield,
page 87.
ASSEMBLING HEADER AND ADAPTER
