214325 34 Revision A

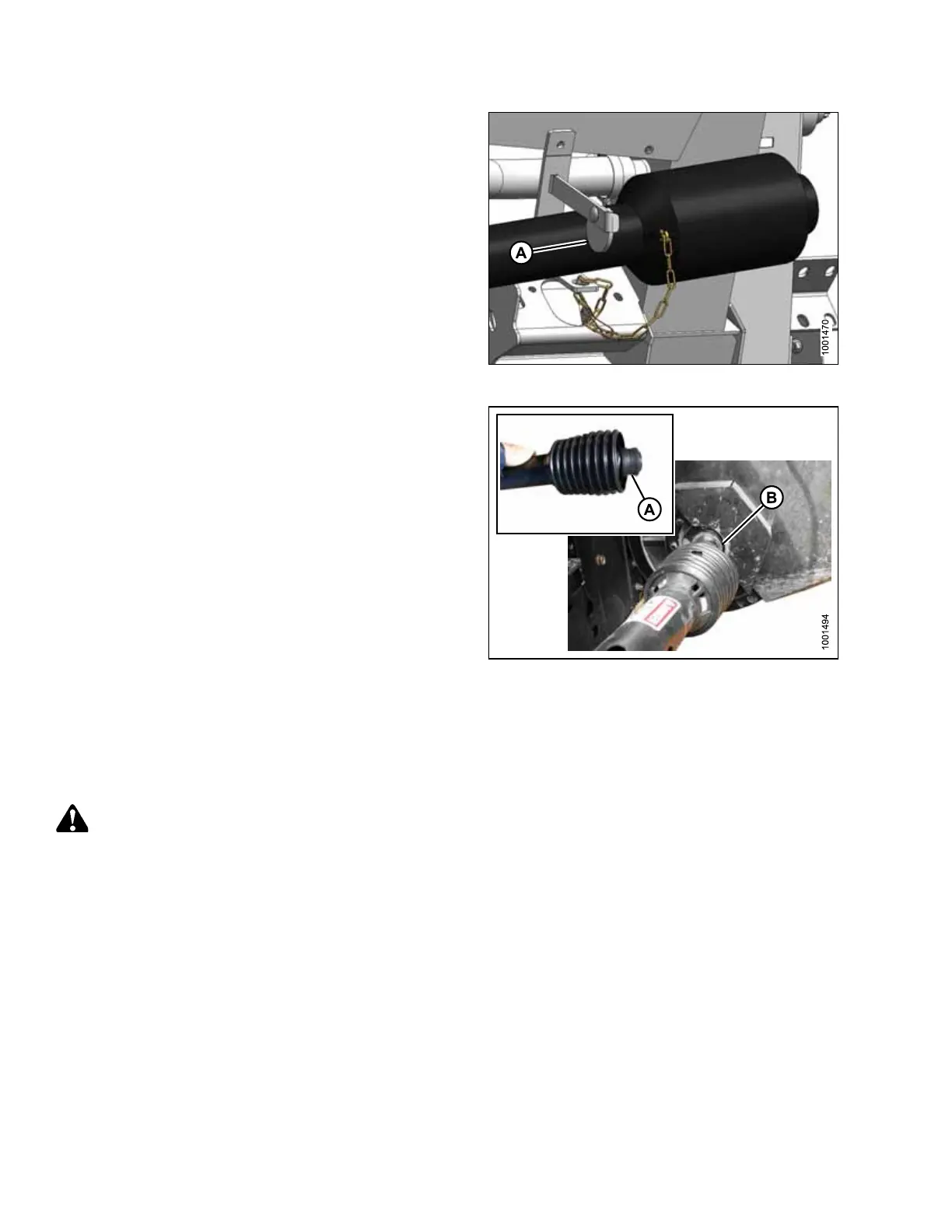

Figure 3.41: Driveline
14. Rotate disc (A) on adapter driveline storage hook, and
remove driveline from hook.
Figure 3.42: Driveline
15. Pull back collar (A) on end of driveline, and push
driveline onto combine output shaft (B) until collar locks.
16. Proceed to 3.4 Completing Header Assembly, page 79.
3.3.2 Case IH Combines
Attaching Header to Case IH Combine
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
ASSEMBLING HEADER AND ADAPTER
