3.4 Completing Header Assembly
3.4.1 Attaching Cam Arms
To attach reel cam arms, follow these steps:

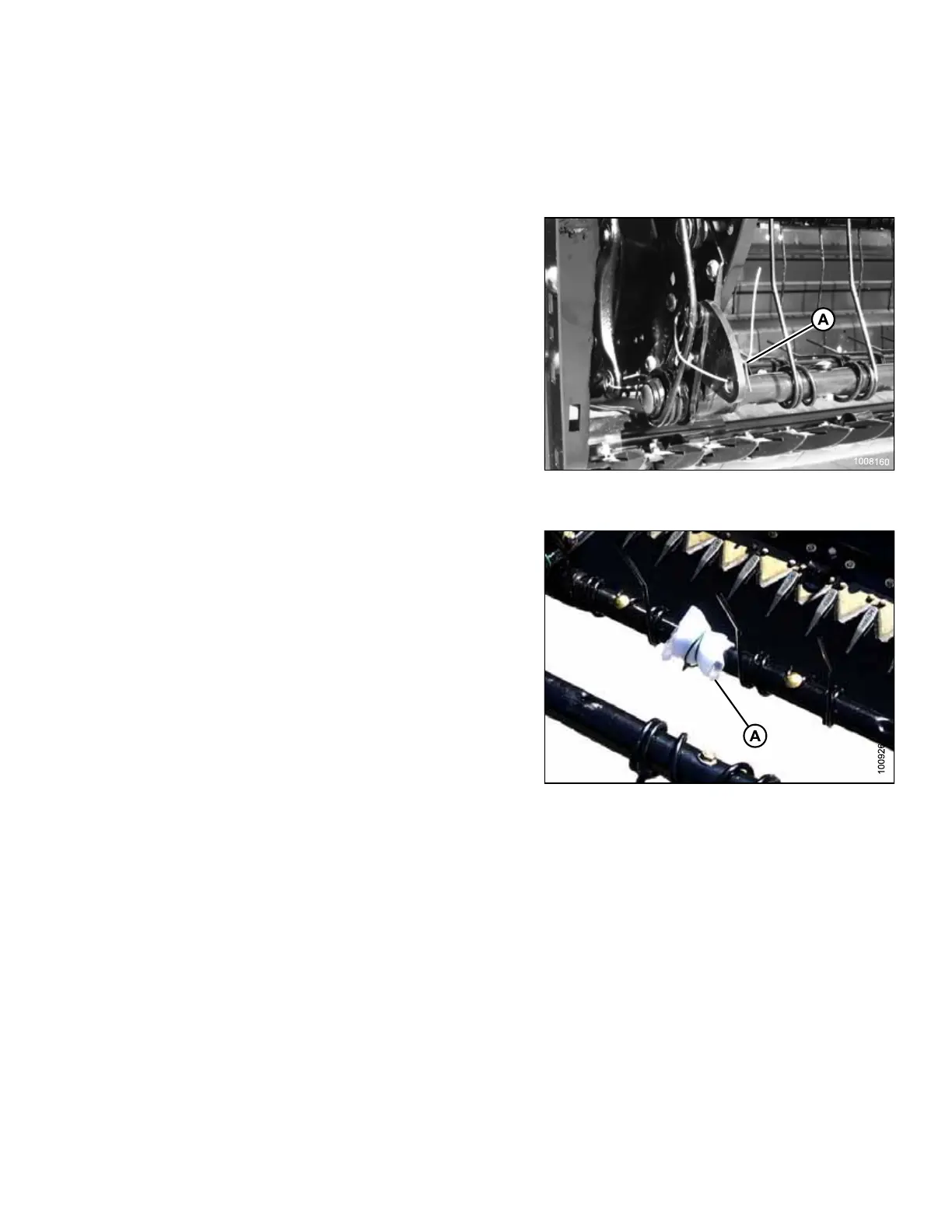

Figure 3.151: Disconnected Cam Links and
Shipping Wire
1. Rotate reel manually until tine tube cranks (A) with
disconnected cam links are accessible.
2. Remove shipping wires one row at a time.
NOTE:
To prevent reel cams from rotating over center, remove
shipping wires one row at a time.
Figure 3.152: Hardware Bag Right Reel
3. Remove bag of hardware (A) from tine bar. It contains
hardware for cam links and endshields.
