214325 115 Revision A

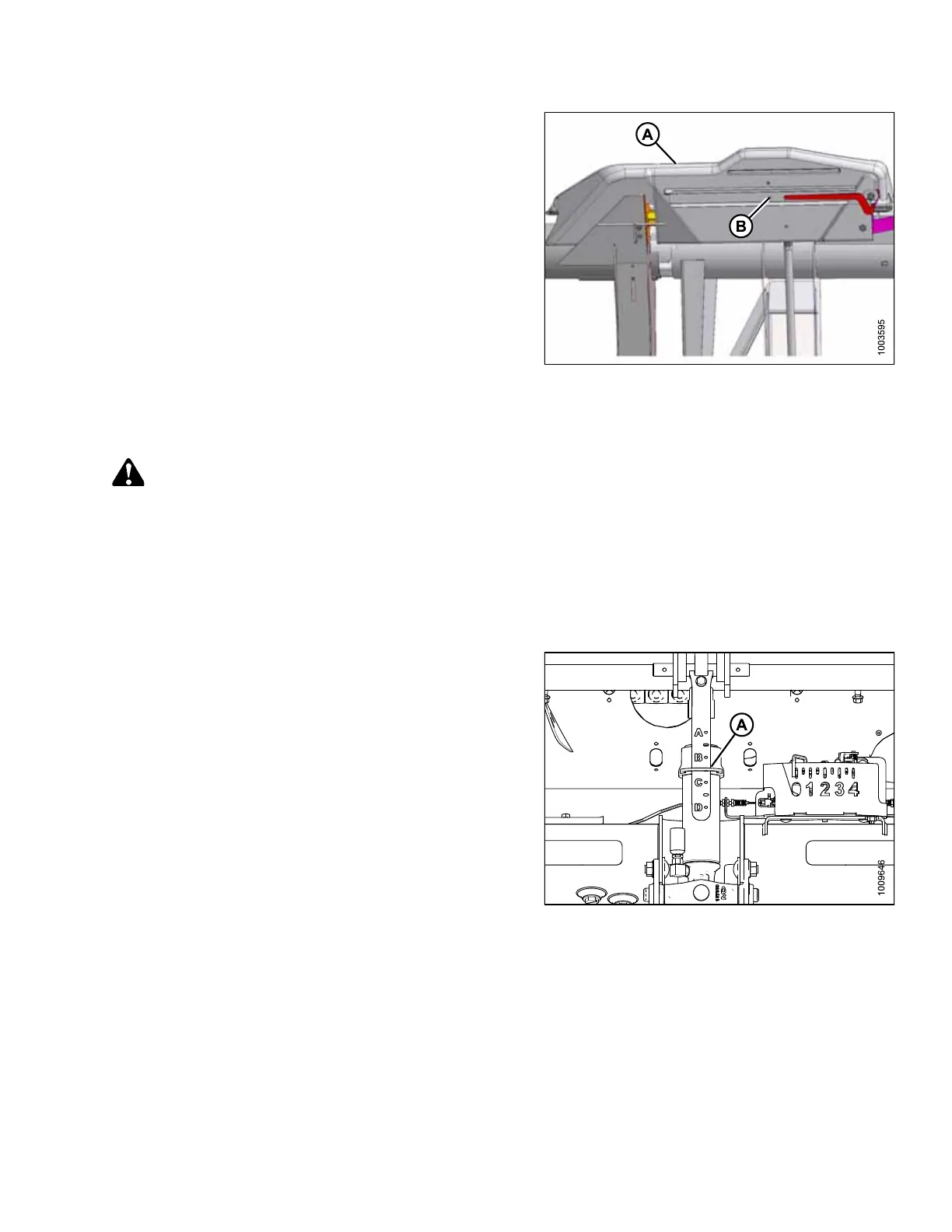

Figure 4.53: Linkage Cover
14. Reinstall linkage cover (A) and secure it with bolt (B).
4.12.2 Adjusting Wing Balance
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
before making adjustments to machine.
Before proceeding, check the wing balance to verify how to adjust the wing. Refer to 4.12.1 Checking Wing
Balance, page 110.
NOTE:
Left side is shown.
Figure 4.54: Center-Link
1. Extend the header center-link to between B and C on
indicator (A).
2. Park combine on level ground and raise header until
cutterbar is 152–254 mm (6–10 in.) off the ground.
3. Stop engine and remove key.
4. If installed, move transport/stabilizer wheels so that
they are supported by header. Refer to instructions
provided with the transport/stabilizer system.
PERFORMING PREDELIVERY CHECKS
