214325 114 Revision A

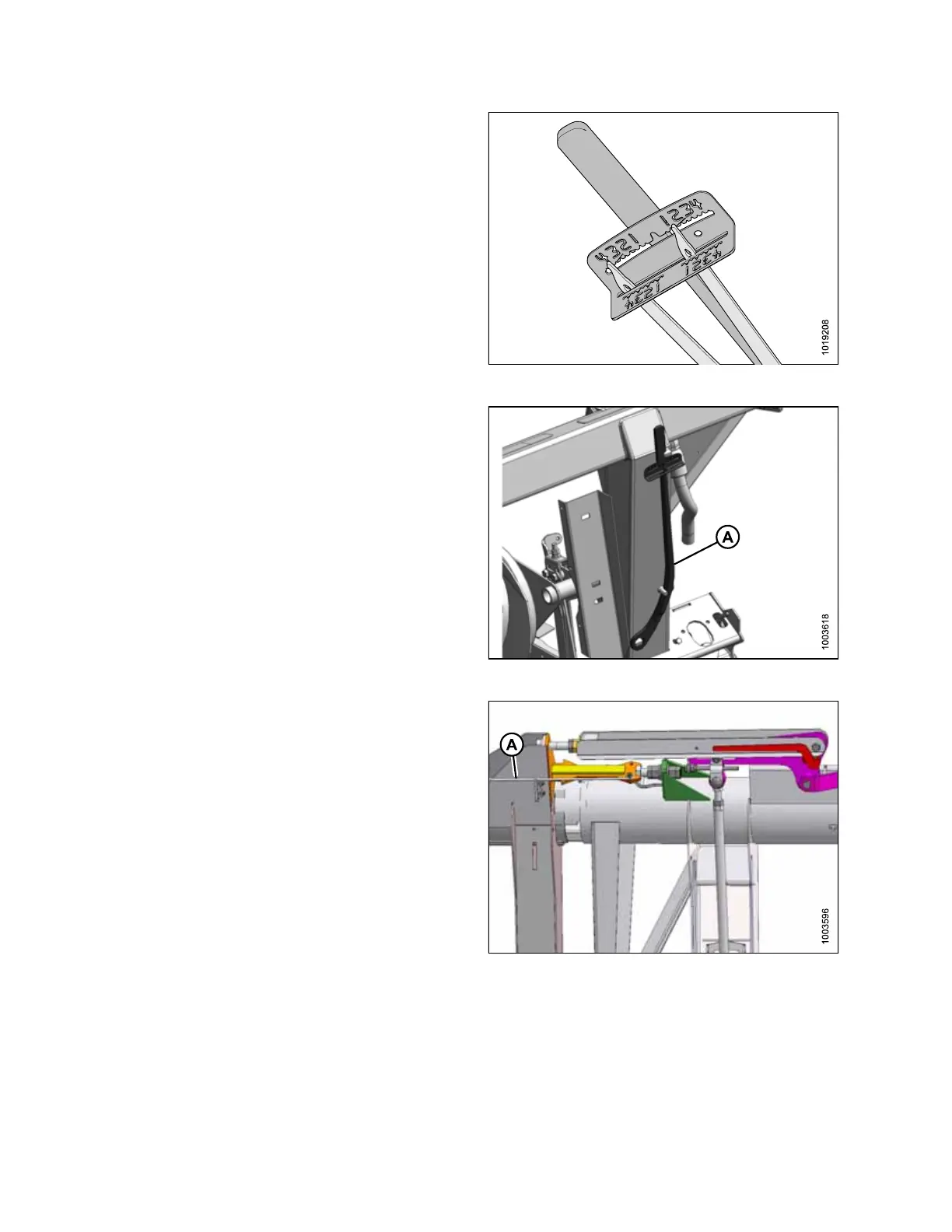

Figure 4.50: Wrench Indicator
• If the indicator range is as shown at right, the wing is
too heavy.
Figure 4.51: Torque Wrench
12. Place wrench (A) back onto right leg of adapter.
Figure 4.52: Wing Lock in Lock Position
13. Lock the wings by moving spring handles (A) to upper
LOCK position.
PERFORMING PREDELIVERY CHECKS
