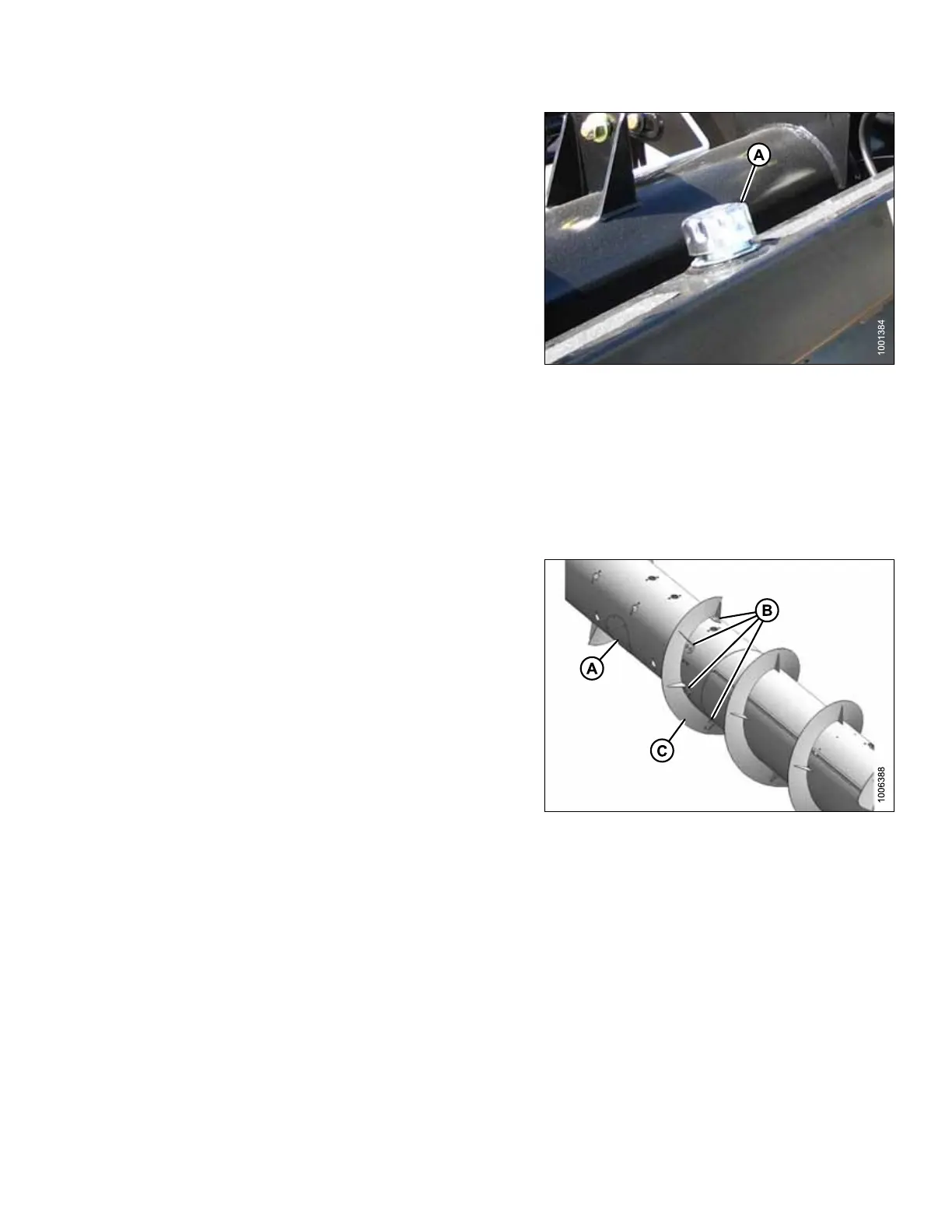

Figure 3.18: Filler Cap
10. Install filler cap (A).
3.2.2 Removing Auger Flighting Extensions
Flighting extension kits may have been supplied with your header to improve feeding in certain crops such as rice.
They are NOT recommended for cereal crops. If necessary, remove auger flighting extensions as follows:
NOTE:
Do NOT use flighting extensions on New Holland CR960, 9060, 970, 9070, and 9080 combines.
Figure 3.19: Auger Flighting Extension
1. Remove access cover (A).
2. Remove eight bolts (B), washers, and nuts that secure
flighting extension (C) to auger, and remove extension.
3. Repeat for other flighting extensions.
4. Reinstall access cover (A).
3.2.3 Removing Stripper Bars
Stripper bar kits may have been supplied with your header to improve feeding in certain crops such as rice. They
are NOT recommended for cereal crops.
NOTE:
The following procedure does NOT apply to New Holland CR960, 9060, 970, 9070, and 9080 combines. For these
combines, proceed to 3.2.4 Replacing Feeder Deflectors: New Holland CR Combines, page 24.
If necessary, remove auger stripper bars as follows:
ASSEMBLING HEADER AND ADAPTER
