214325 22 Revision A

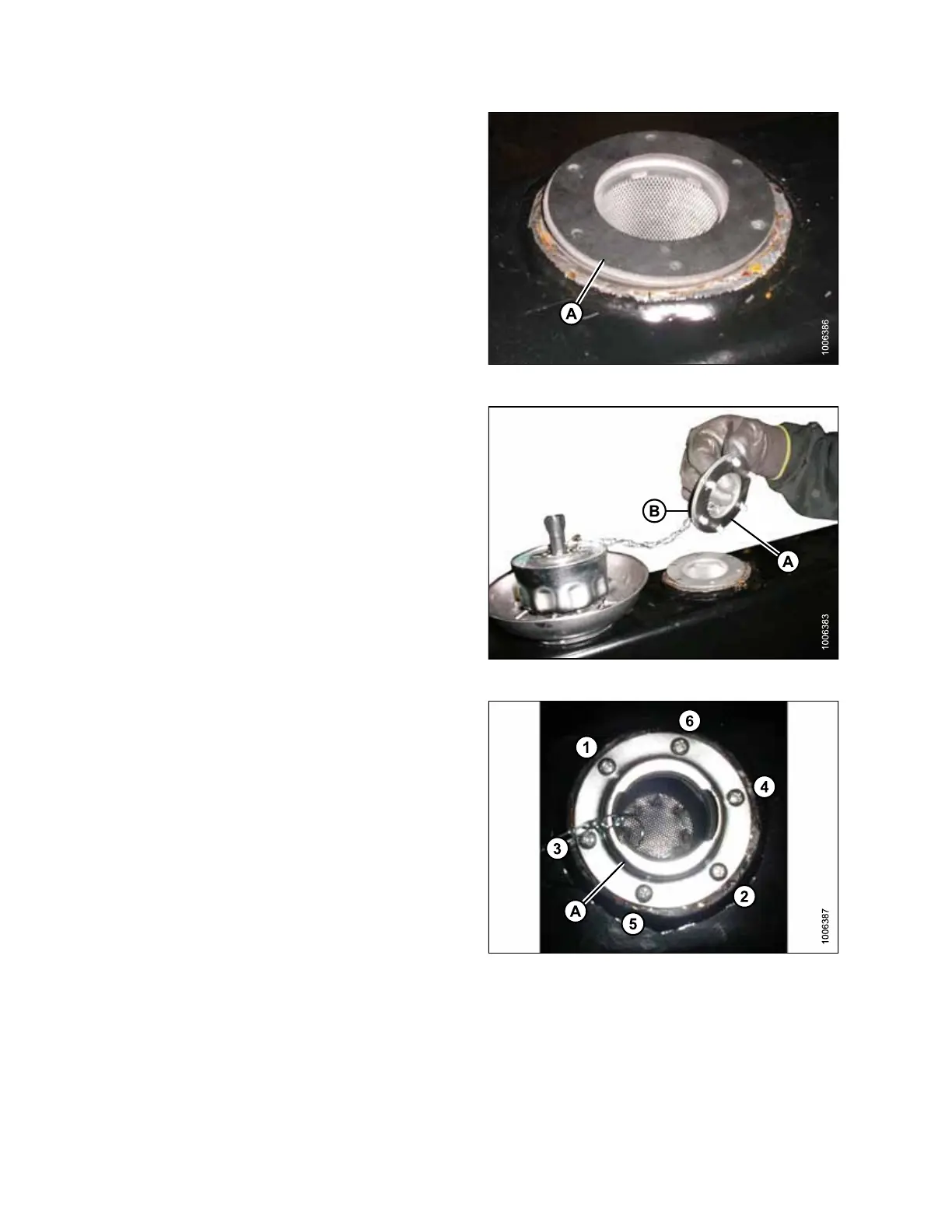

Figure 3.15: Top Gasket
3. Remove top gasket (A) for use in next step.
NOTE:
There are two gaskets—one on either side of filler
strainer flange.
Figure 3.16: Filler Cap Neck
4. Place gasket (A) (removed from top of filler strainer)
onto filler cap neck (B), and align holes.
5. Install flange head screws supplied in bag (refer to Step
1, page 21) onto filler cap neck (B), pressing screws
through gasket (A).
6. Apply Loctite
®
#565 (or equivalent) to screws.
Figure 3.17: Screw Hole Locations
7. Place filler cap neck (A) (complete with screws) over
opening. Ensure machine screws are aligned with
threaded holes.
8. Carefully thread in machine screws according to
numbered sequence as shown to prevent cross
threading.
9. Torque screws to 3.5 Nm (31 lbf·in) according to
numbered sequence.
ASSEMBLING HEADER AND ADAPTER
