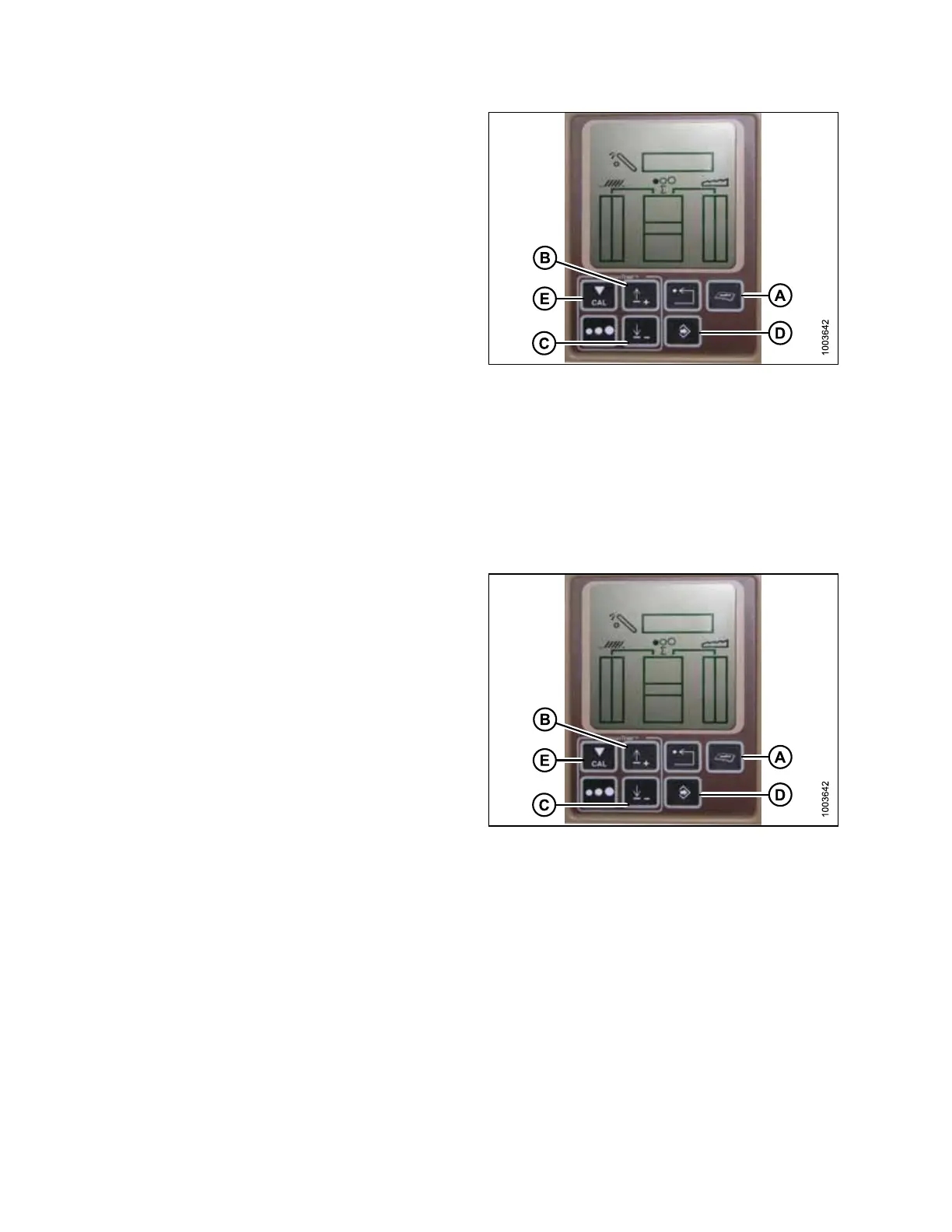

Figure 5.145: John Deere Combine Display
1. Press DIAGNOSTIC button (A) on monitor. DIA
appears on the monitor.
2. Press UP button (B) until EO1 appears on monitor, and
press ENTER (D). This is header adjustment.
3. Press UP (B) or DOWN (C) button until 132 is displayed
on top portion of monitor. This is reading for
accumulator.
4. Press ENTER (D) to select 132 as accumulator reading
(this will allow you to change display to a three-digit
number so it has a 0 in it, for example, x0x).
5. Press UP (B) or DOWN (C) button until desired number
is displayed, and press CAL (E) button.
6. Press ENTER (D) to save changes. The accumulator is
now deactivated.
Setting Sensing Grain Header Height to 50 (John Deere 60 Series)
NOTE:
Changes may have been made to combine controls or display since this document was published. Refer to
combine operator’s manual for updates.
To set sensing grain header height, follow these steps:
Figure 5.146: John Deere Combine Display
1. Press DIAGNOSTIC button (A) on monitor. DIA
appears on the monitor.
2. Press UP button (B) until EO1 appears on monitor, and
press ENTER (D). This is header adjustment.
3. Press UP (B) or DOWN (C) button until 128 is displayed
on top portion of monitor. This is reading for the sensor.
4. Press ENTER (D) to select 128 as sensor reading (this
will allow you to change display to a three-digit number
so it has a 50 in it).
5. Press UP (B) or DOWN (C) button until desired number
is displayed, and press CAL (E) button.
6. Press ENTER (D) to save the changes. The height is
now set.
