4.17 Checking Draper Seal

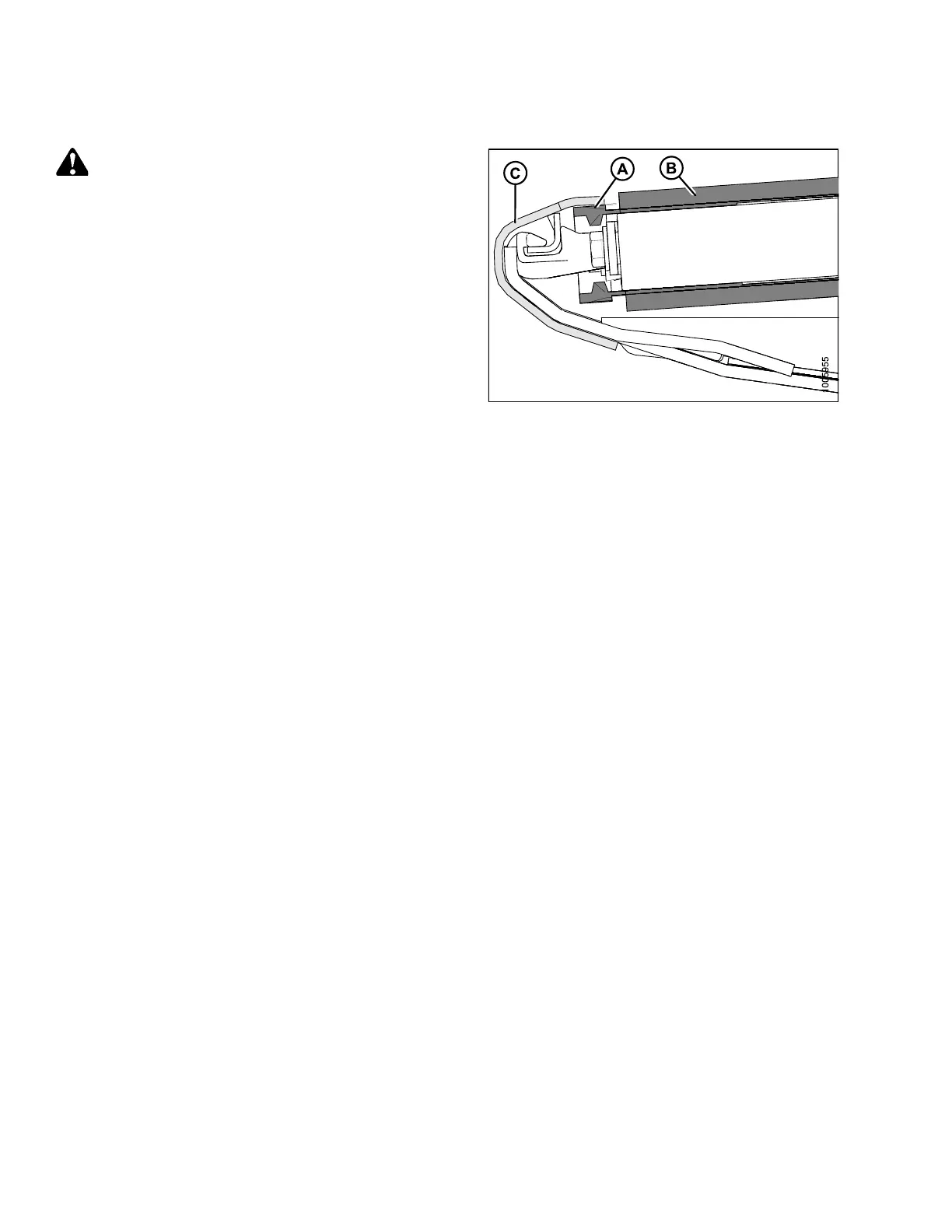

Figure 4.75: Draper Seal
WARNING
To avoid bodily injury or death from unexpected startup
of machine, always stop engine and remove key before
making adjustments to machine.
1. Lower header to working position. Stop engine, and
remove key from ignition.
2. Check that clearance (A) between draper (B) and
cutterbar (C) is 0 – 3 mm (1/8 in.). Take measurements
at deck support locations. Refer to chart and illustration
on following page for approximate support locations.
PERFORMING PREDELIVERY CHECKS
