214325 127 Revision A
Table 4.4 Deck Support Locations
Header
Size
Approximate Location of Support from Drive Roller (mm. [in.])
AB
C
DE
30-ft. (G) 354 (13-15/16) 1773 (69-13/16) 3191 (125-5/8)
--
35-ft. (H) 354 (13-15/16) 1550 (61) 2747 (108-3/16) 3949 (155-7/16)
-
40-ft. (H) 354 (13-15/16) 1809 (71-1/8) 3258 (128-1/4) 4710 (185-7/16)
-
45-ft. (J) 354 (13-15/16) 1864 (73-3/8) 3486 (137-1/4) 4483 (176-1/2) 5479 (215-11/16)

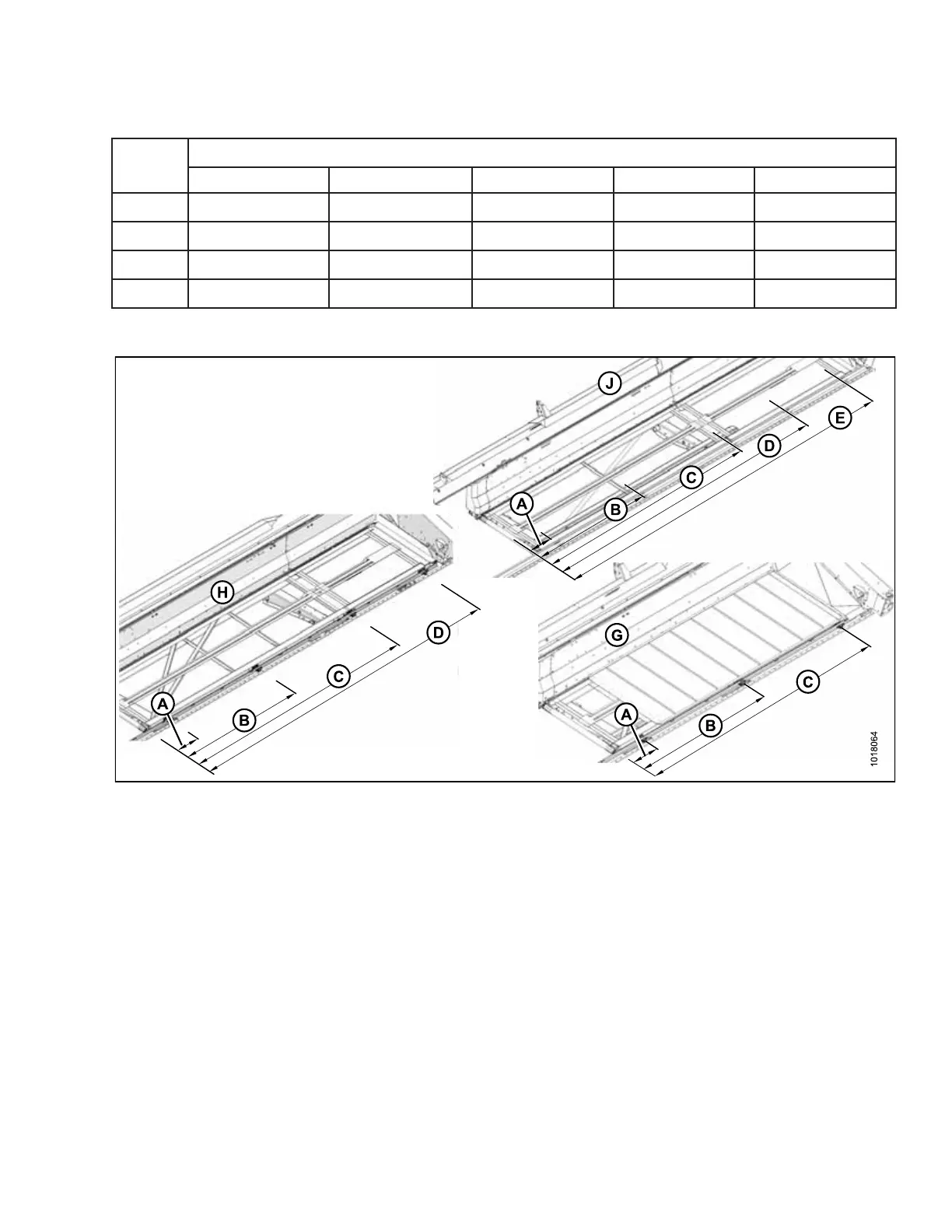

Figure 4.76: Deck Support Locations – Left Shown, Right Opposite
PERFORMING PREDELIVERY CHECKS
