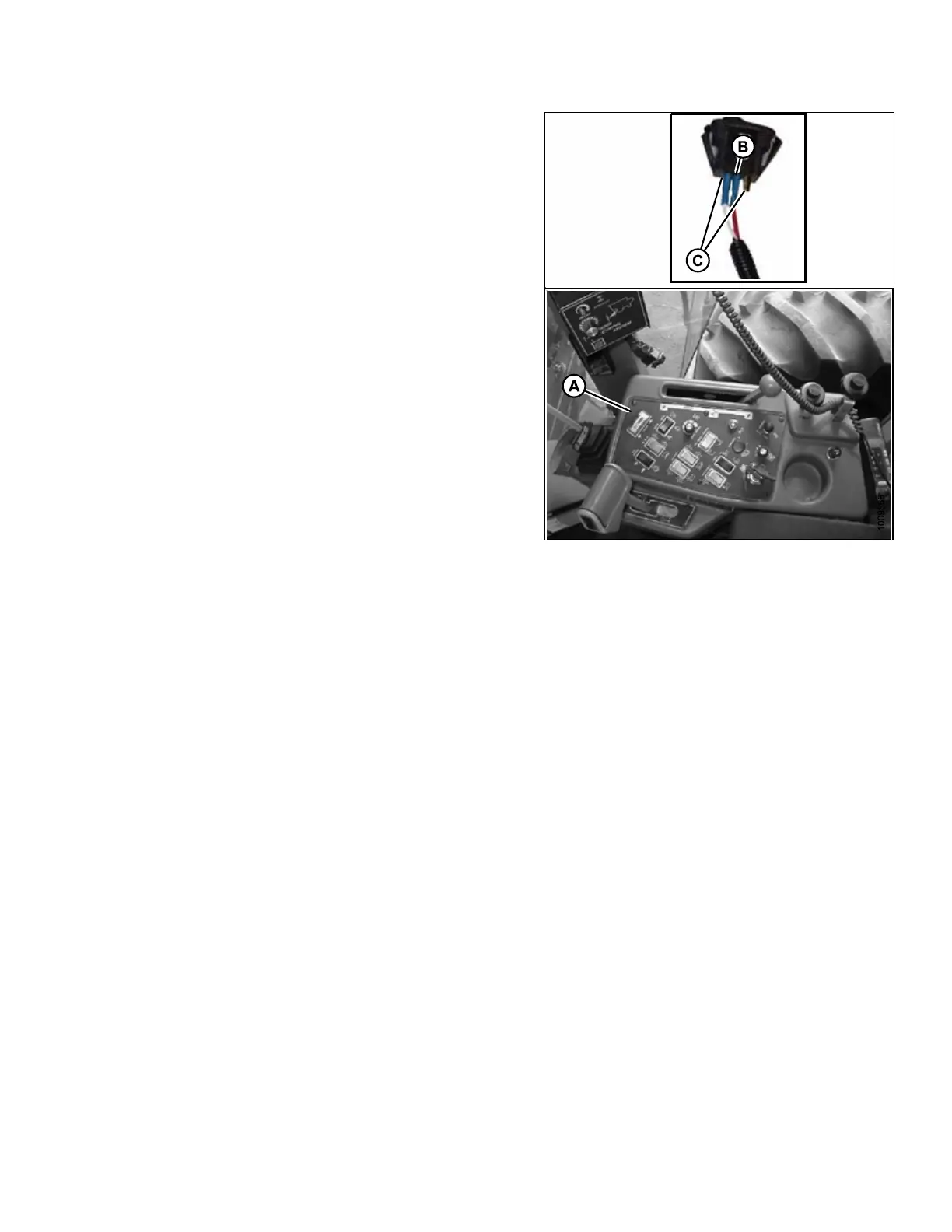

Figure 3.30: Switch and Console
9. Mount switch plate onto console (A) in a
suitable location.
10. Connect harness to switch with red wire to center
terminal (B), and white wire to either outer terminal (C).
11. Reconnect the battery cable.
12. Operate the switch to select either REEL FORE-AFT or
HEADER TILT function.
Preparing Transition Frame: AGCO Combines
AGCO configured CA25 combine adapters ship with filler plates for Class 6 combines installed. For AGCO Class 7
or Class 8 combines, remove filler plates as follows:
