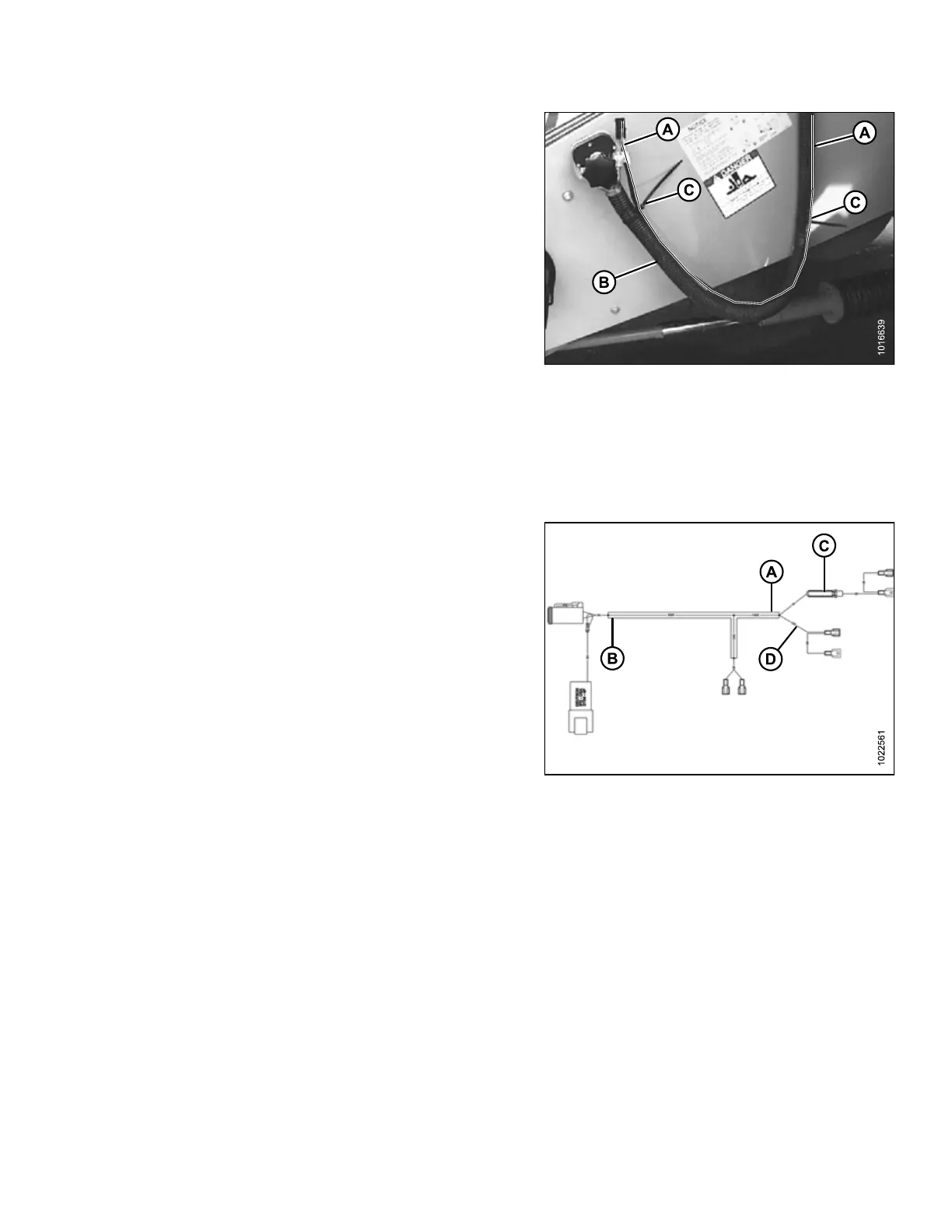

Figure 3.104: Combine Multicoupler
20. Secure the MacDon wiring harness (A) to conduit (B)
(starting from the multicoupler end) with cable ties (C).
Installing Reel Fore-Aft/Header Tilt Selector Switch and Harness: CLAAS 700 Series
IMPORTANT:
To prevent possible damage to electronic components, disconnect the positive cable from the combine battery and
turn BATTERY DISCONNECT switch OFF before connecting harness to combine connectors.
Figure 3.105: MD #279753 Wiring Harness
A - Cab End
B - Multicoupler End
C - Power Supply Connectors
D - Switch Connectors
1. Prepare to install the REEL FORE-AFT/HEADER TILT
switch:
a. Fully lower combine feeder house.
b. Shut down the combine. Disconnect the
battery cable.
c. Obtain the long reel fore-aft/header tilt switch wire
harness (MD #279753) from the completion
package kit.
