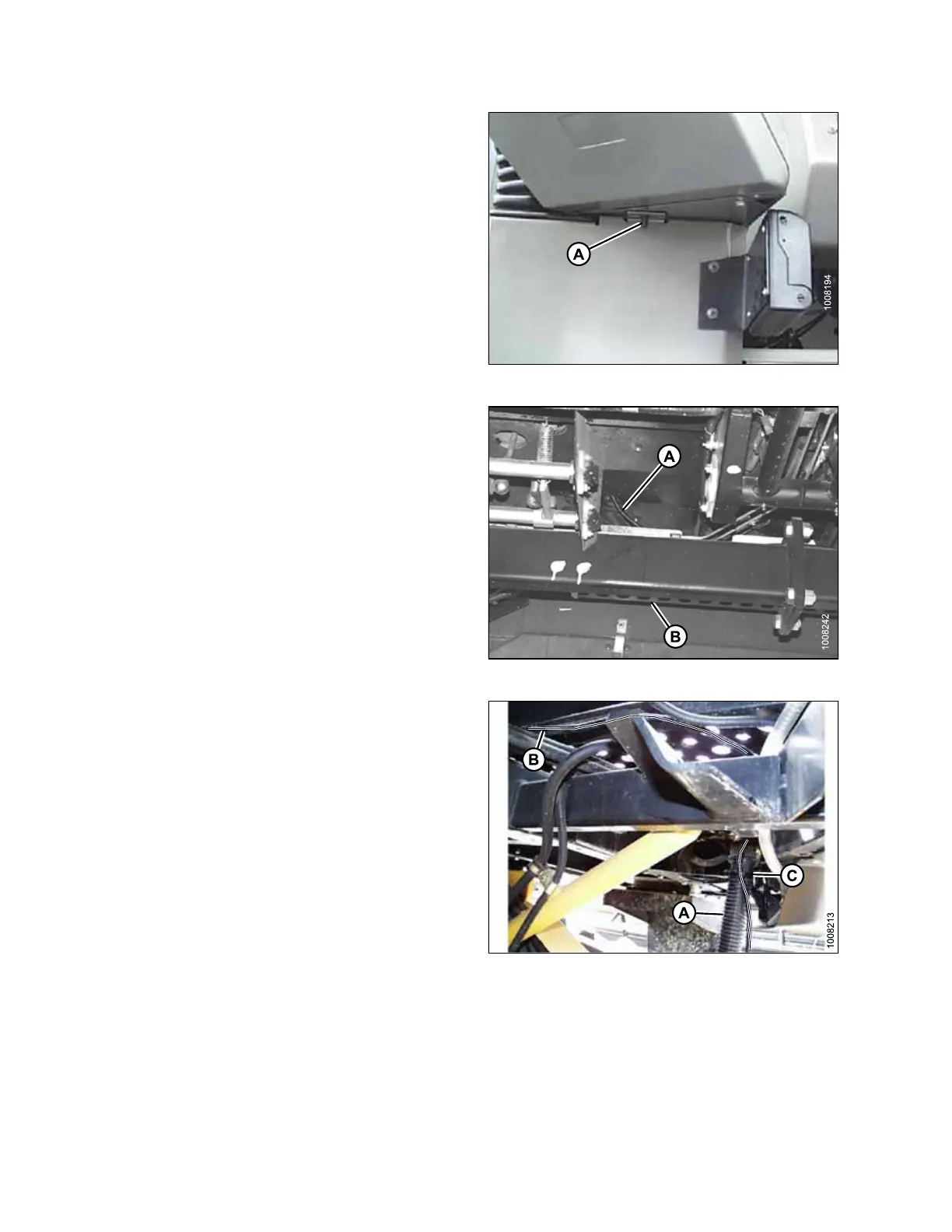

Figure 3.101: Combine Monitor
17. Return the console to its original position, and install the
washer and 13 mm hex nut (A) removed in
Step 3, page 53.
Figure 3.102: Cab Underside
18. Route MacDon wiring harness (A) underneath the cab
floor. Place the harness in the steel tray (B) along
underside of cab floor to prevent it from being
damaged.
Figure 3.103: Cab Underside
19. Route wiring harness from the left corner of steel tray to
conduit (A), between cab floor and frame as shown at
location (B), and along conduit (A) down to the combine
multicoupler.
