214325 59 Revision A

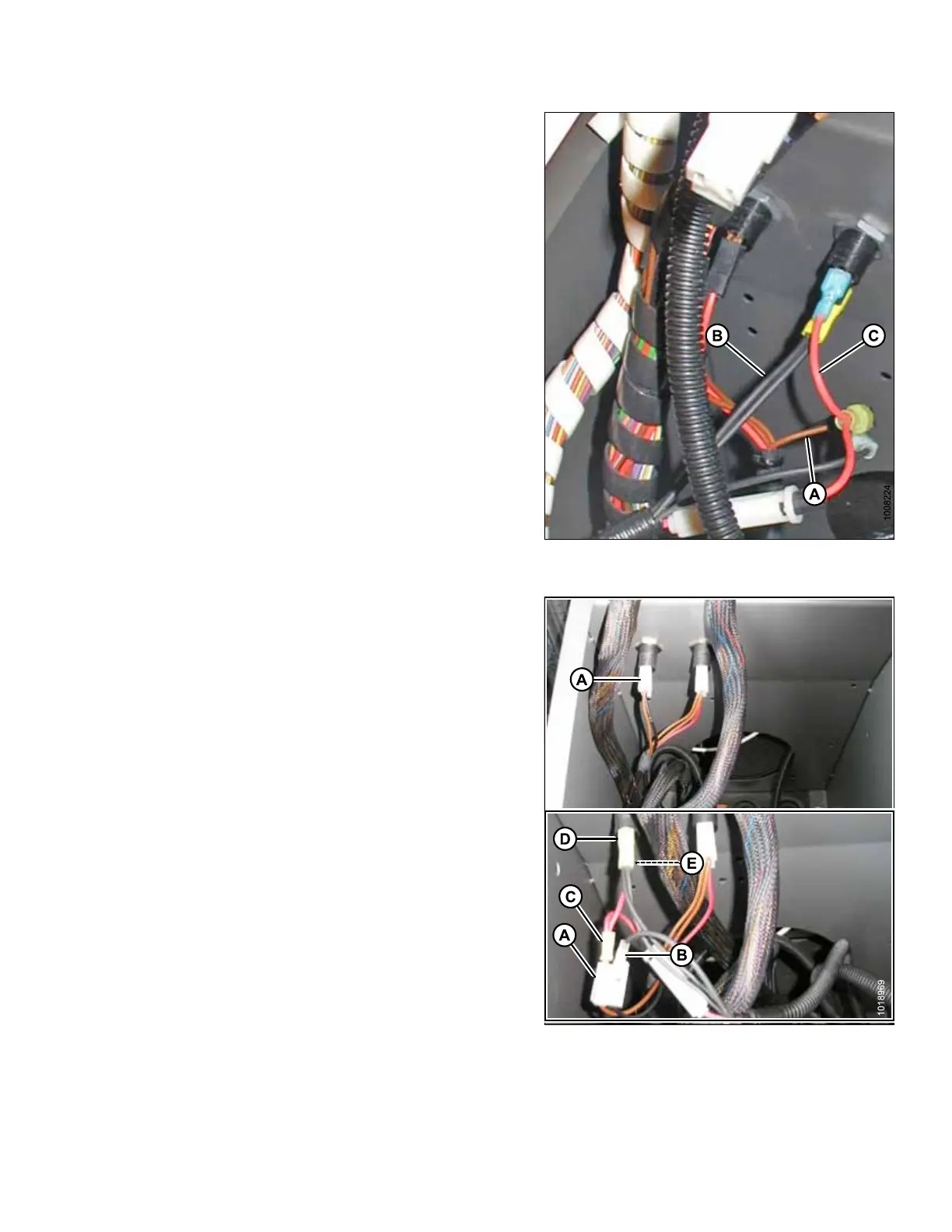

Figure 3.99: Two Connector Hookup: Switch
Harness Installed
15. Two-connector hookups:
a. Remove the brown wire (A) from the power source
under the console, and replace it with the black
wire (B) from the MacDon harness.
b. Remove the black wire from the power source, and
replace it with the red wire (C) from the MacDon
harness.
c. Attach the brown wire (removed from the power
source) to the other red wire coming from
the MacDon harness.
d. Attach the black wire (removed from the power
source) to the other black wire coming from
the MacDon harness.
Figure 3.100: Single Connector Hookup
Top - Before Connecting the Switch Harness
Bottom - After Connecting the Switch Harness
16. Single-connector hookups:
a. Remove existing white plug (A) with brown and
black wires from power source.
b. Remove insulation from male blades (B) and (C) on
MacDon wire harness.
c. Attach black male connector (B) to existing
connector (A) at black wire location.
d. Attach red male connector (C) to existing
connector (A) at brown wire location.
e. Attach connector (D) with two black wires to upper
terminal on power source.
f. Attach connector (E) with red wire to lower terminal
on power source.
ASSEMBLING HEADER AND ADAPTER
