214325 58 Revision A

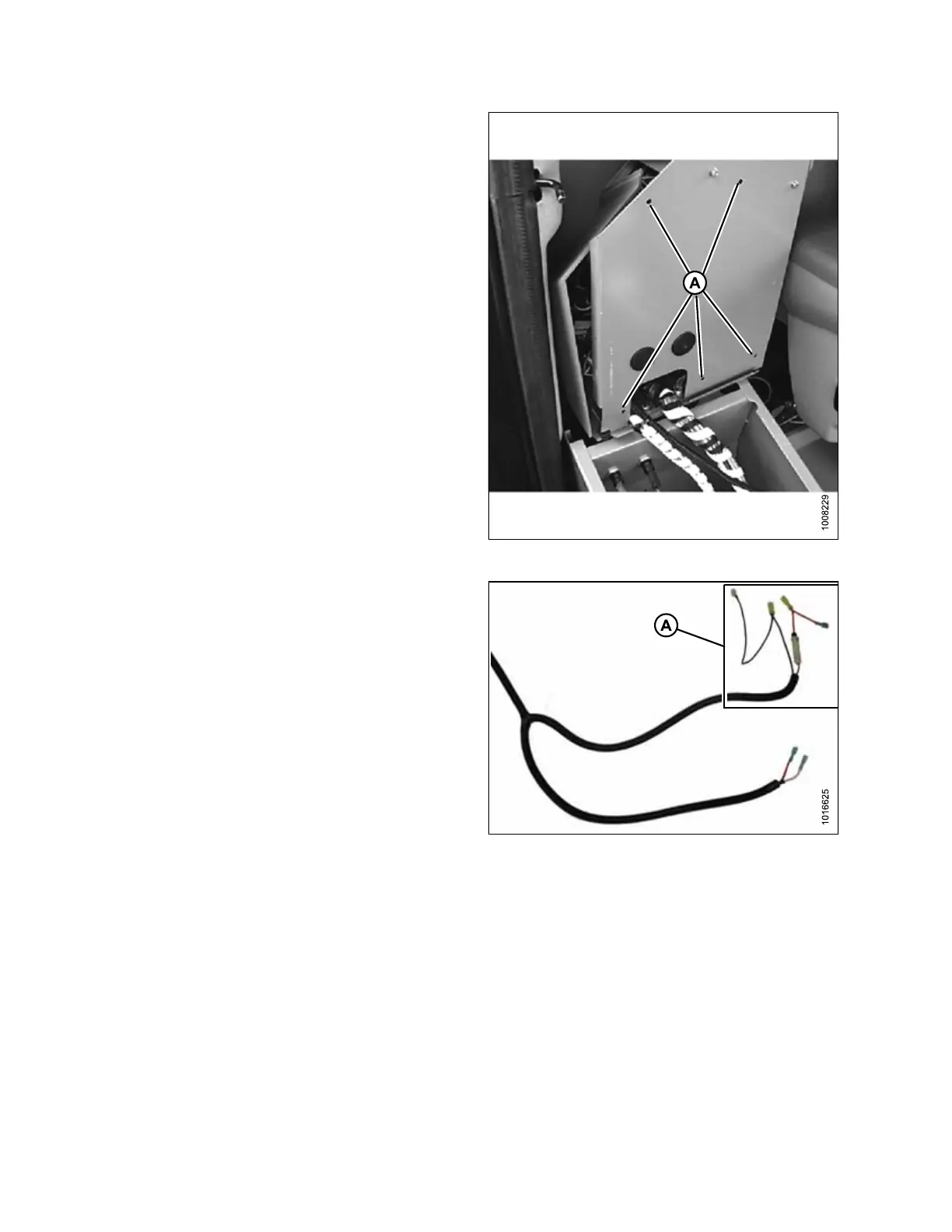

Figure 3.97: Console Underside
13. Reinstall console cover and secure with five screws that
were removed in Step 7, page 55 .
Figure 3.98: MacDon Harness
14. Depending on the type of connection required—two
connectors or single connector—connect the power
source end (A) of the MacDon wire harness to the
in-cab power source (under the console) as follows:
ASSEMBLING HEADER AND ADAPTER
