214325 55 Revision A

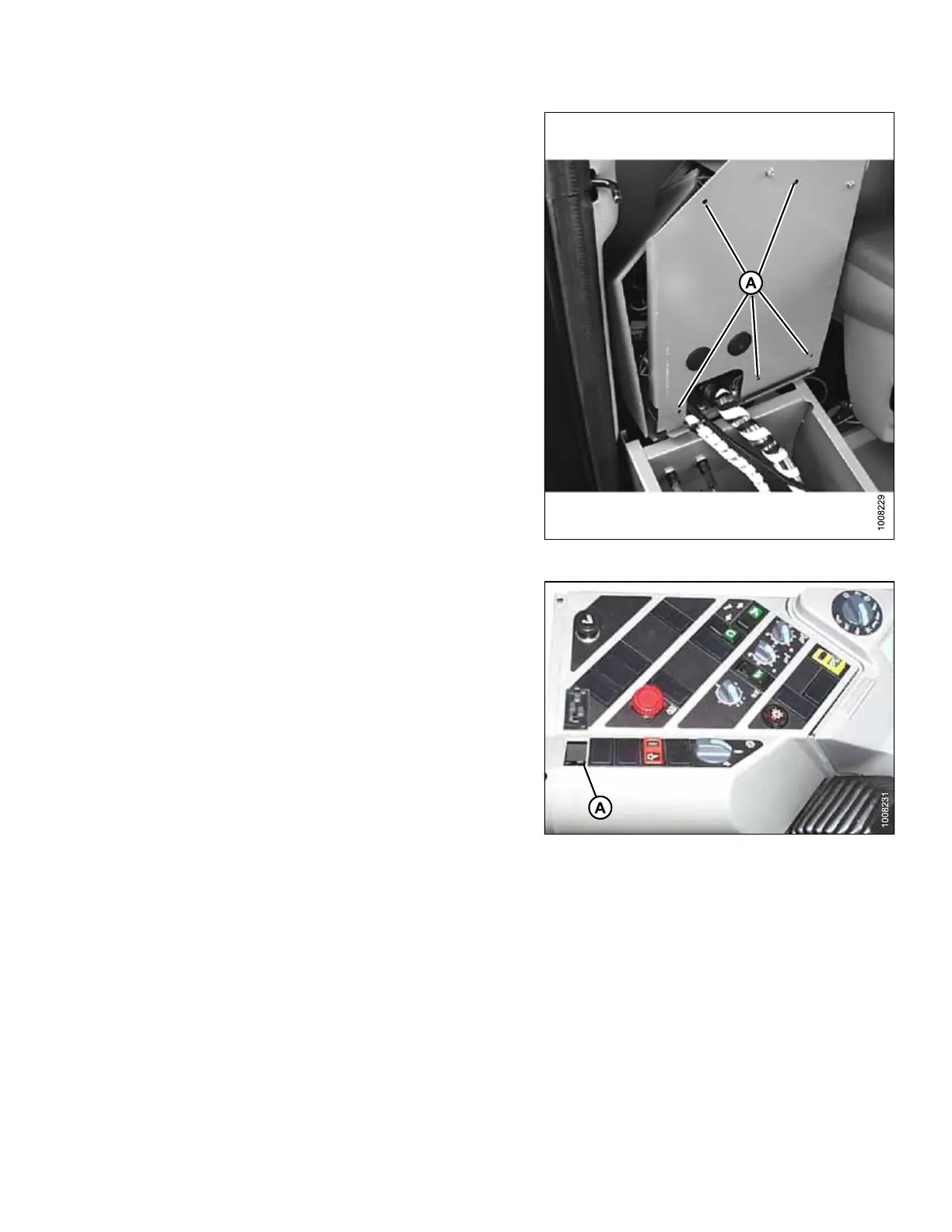

Figure 3.91: Console Underside
7. Remove five screws (A) and cover to access wiring
connections inside console.
Figure 3.92: Switch Plug in Console
8. Remove the blank switch plug (A) from top side of
console as shown. Route switch harness from under
the console through the hole in console.
ASSEMBLING HEADER AND ADAPTER
