214325 54 Revision A

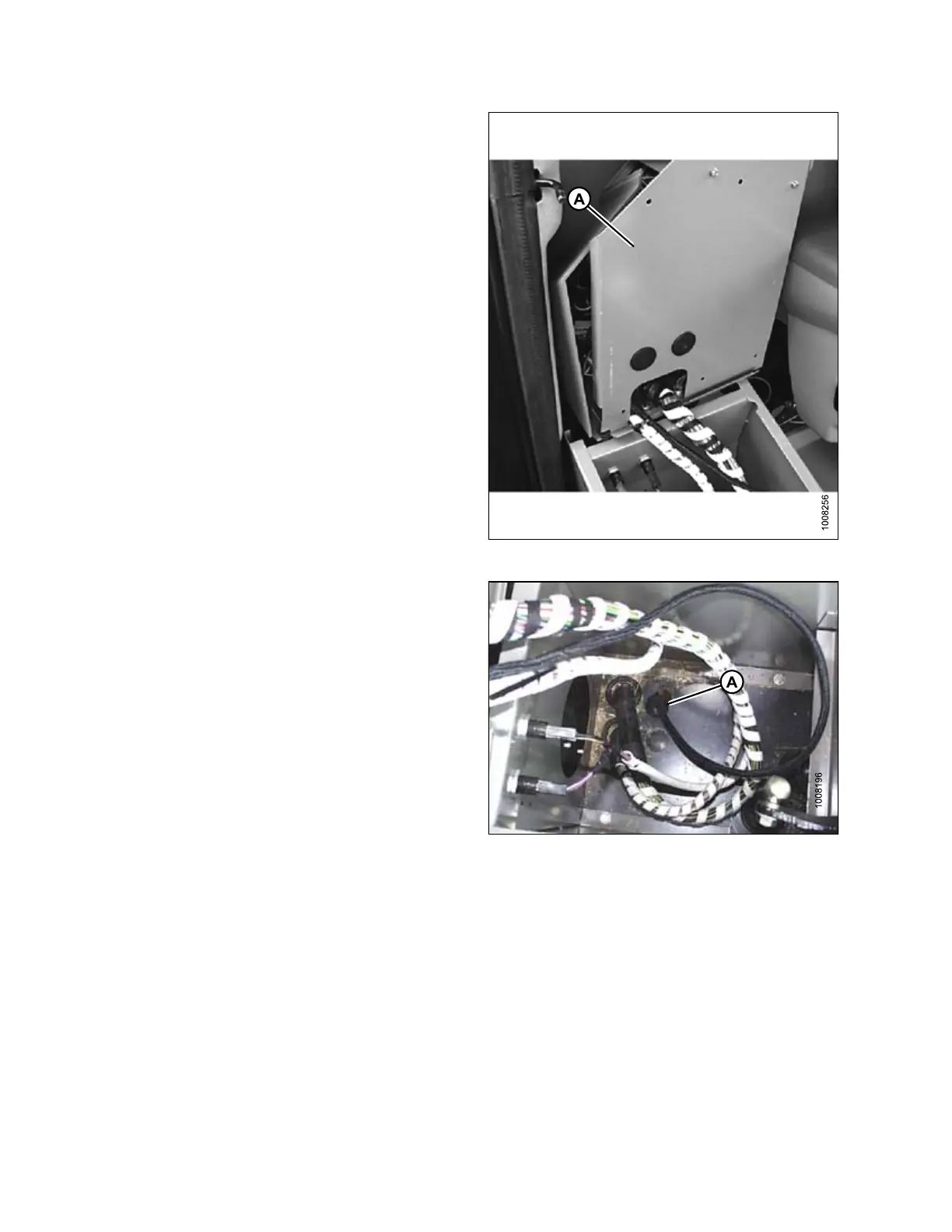

Figure 3.89: Opened Console
4. Rotate console (A) to access wiring.
Figure 3.90: Harness Routing
5. Remove plug (A) from cab floor under the console.
Push the MacDon wire harness adapter end connector
through the hole, and route most of the harness
through hole.
6. Make a slit on the rubber floor plug (A) from the center
and slide plug over wiring harness.
NOTE:
Maintain slack in the harness to prevent damage
to harness.
ASSEMBLING HEADER AND ADAPTER
