214325 144 Revision A
5.1.2 Case IH 2300/2500 and 5088/6088/7088 Combines
Engaging Auto Header Height Control (Case IH 2300)
NOTE:
Changes may have been made to combine controls or display since this document was published. Refer to
combine operator’s manual for updates.

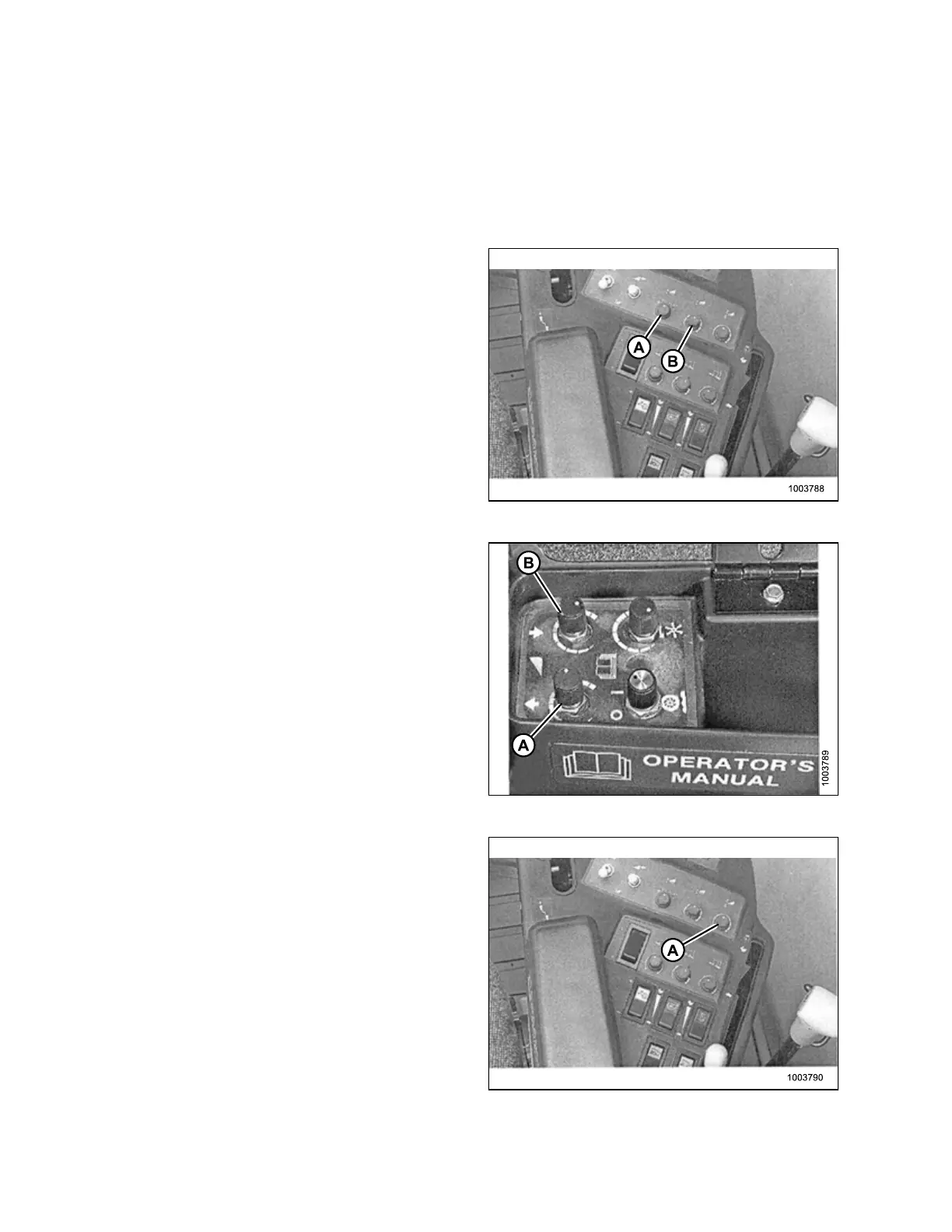

Figure 5.9: Combine Controls
1. Turn mode select switch (A) to HT.
2. Set desired header height with position control
knob (B). The auto header height control (AHHC) will
raise and lower header to maintain this fixed distance
from ground.
3. Turn feeder ON.
4. Push header LOWER switch.
Figure 5.10: Combine Controls
5. Use header raise rate control (A) and header lower rate
control (B) as required to adjust rate at which header
raises or lowers to maintain desired header height.
Figure 5.11: Combine Controls
6. Use sensitivity control (A) to set sensitivity to changing
ground conditions.
SETTING UP AUTO HEADER HEIGHT CONTROL
