214325 187 Revision A

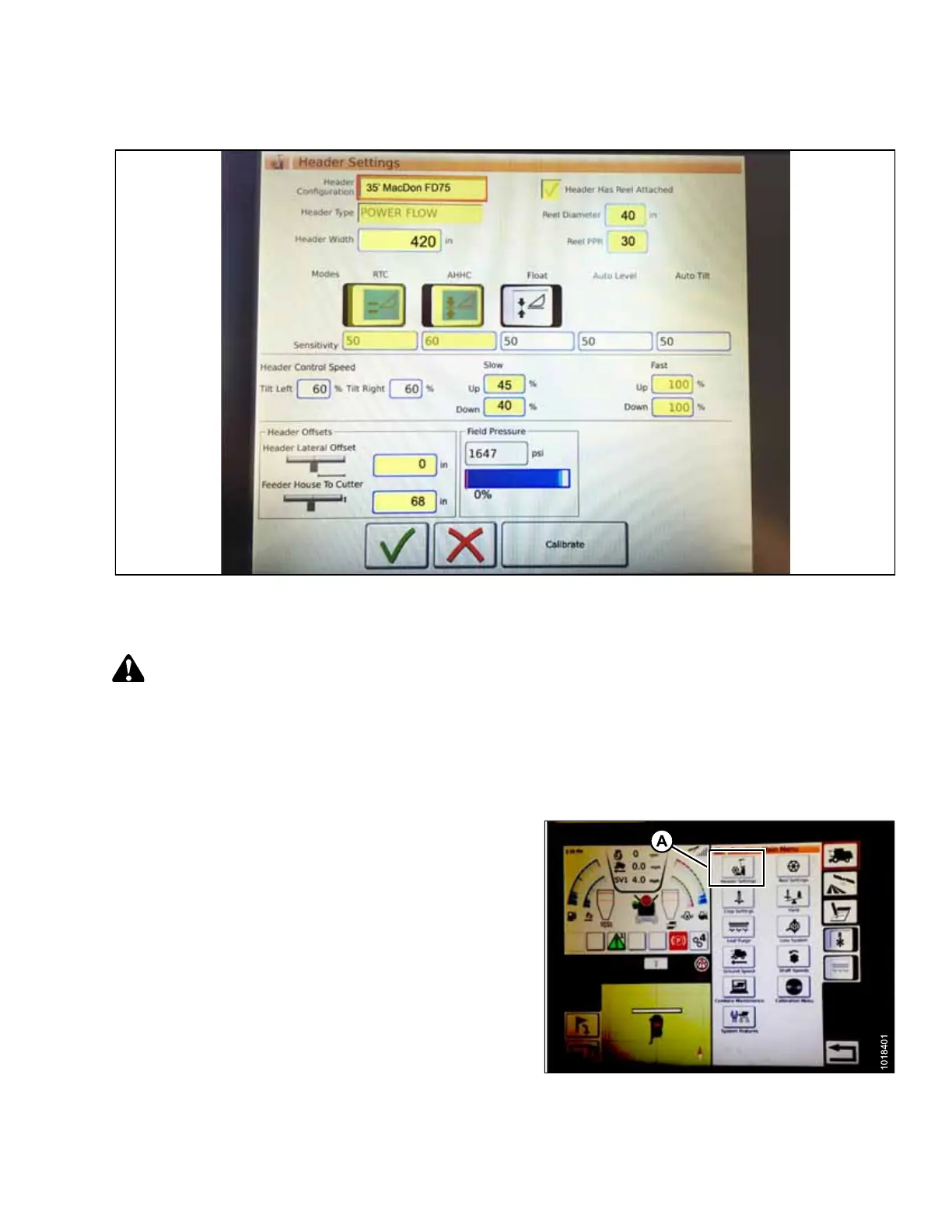

Figure 5.100: Header Settings Inputs for MacDon Headers
Calibrating Header (Gleaner S9 Series)
The auto header control functions are configured on HEADER SETTINGS page.
CAUTION
Clear the area of other persons, pets, etc. Keep children away from machinery. Walk around the machine
to be sure no one is under, on, or close to it.
NOTE:
Changes may have been made to combine controls or display since this document was published. Refer to
combine operator’s manual for updates.
Figure 5.101: Combine Main Menu
1. On COMBINE MAIN MENU, touch HEADER
SETTINGS (A).
SETTING UP AUTO HEADER HEIGHT CONTROL
To Next Page
