214325 269 Revision A

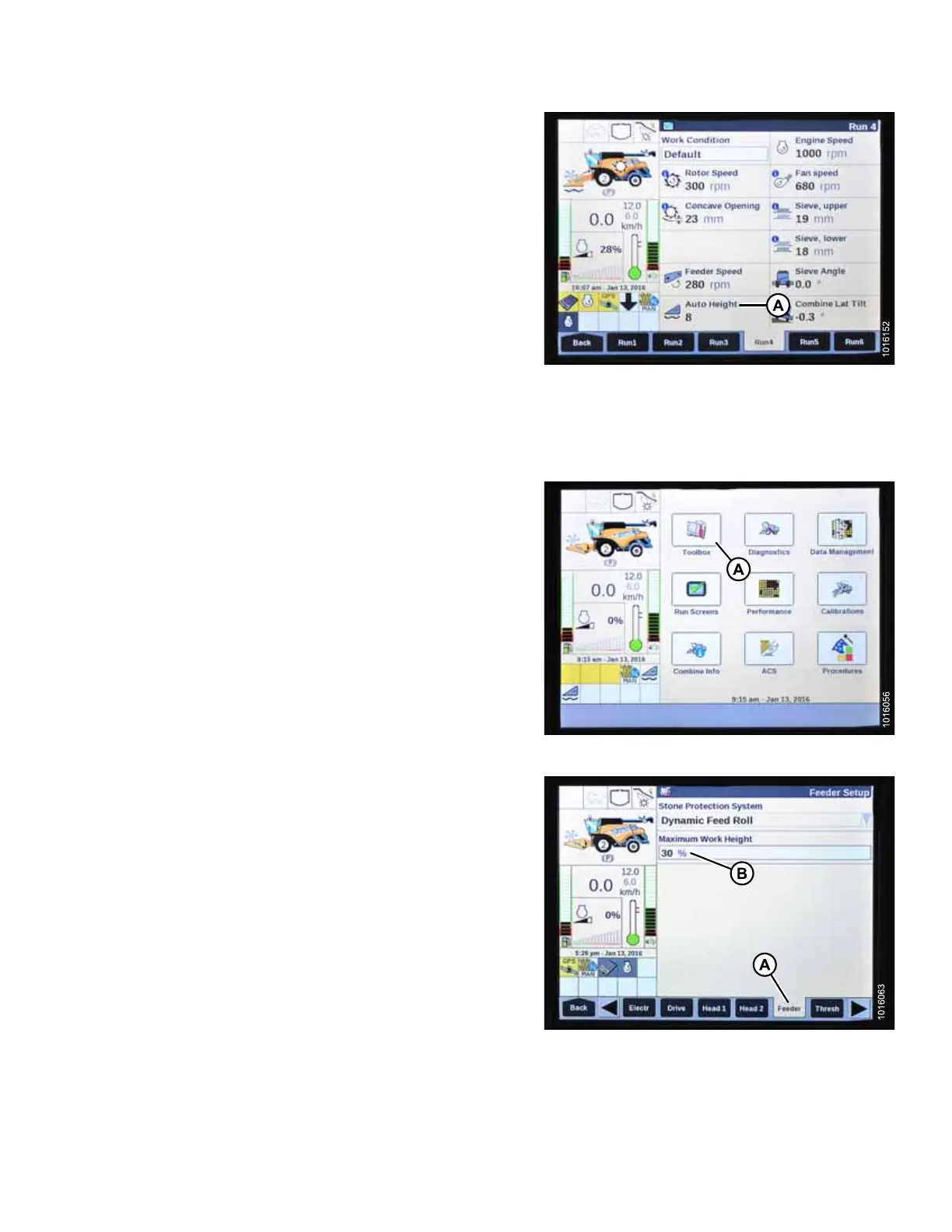

Figure 5.283: New Holland Combine Display
3. Select RUN tab that shows MANUAL HEIGHT.
NOTE:
The MANUAL HEIGHT field may appear on any of RUN
tabs. When an auto height set point button is pressed,
display will change to AUTO HEIGHT (A).
4. Lower header to ground.
5. Select one of auto height set point buttons shown in
Figure 5.281, page 268.
• Press SET 1 button for a light ground setting (1 on
float indicator box)
• Press SET 2 button for a heavier ground setting
(2 on float indicator box)
Setting Maximum Work Height (New Holland CR Series)
This procedure applies only to 2015 and later CR models (6.80, 6.90, 7.90, 8.90, 9.90, and 10.90).
Figure 5.284: New Holland Combine Display
1. Select TOOLBOX (A) on main page. The TOOLBOX
page displays.
Figure 5.285: New Holland Combine Display
2. Select FEEDER (A). The FEEDER SETUP page
displays.
3. Select MAXIMUM WORK HEIGHT field (B).
SETTING UP AUTO HEADER HEIGHT CONTROL
