214325 88 Revision A

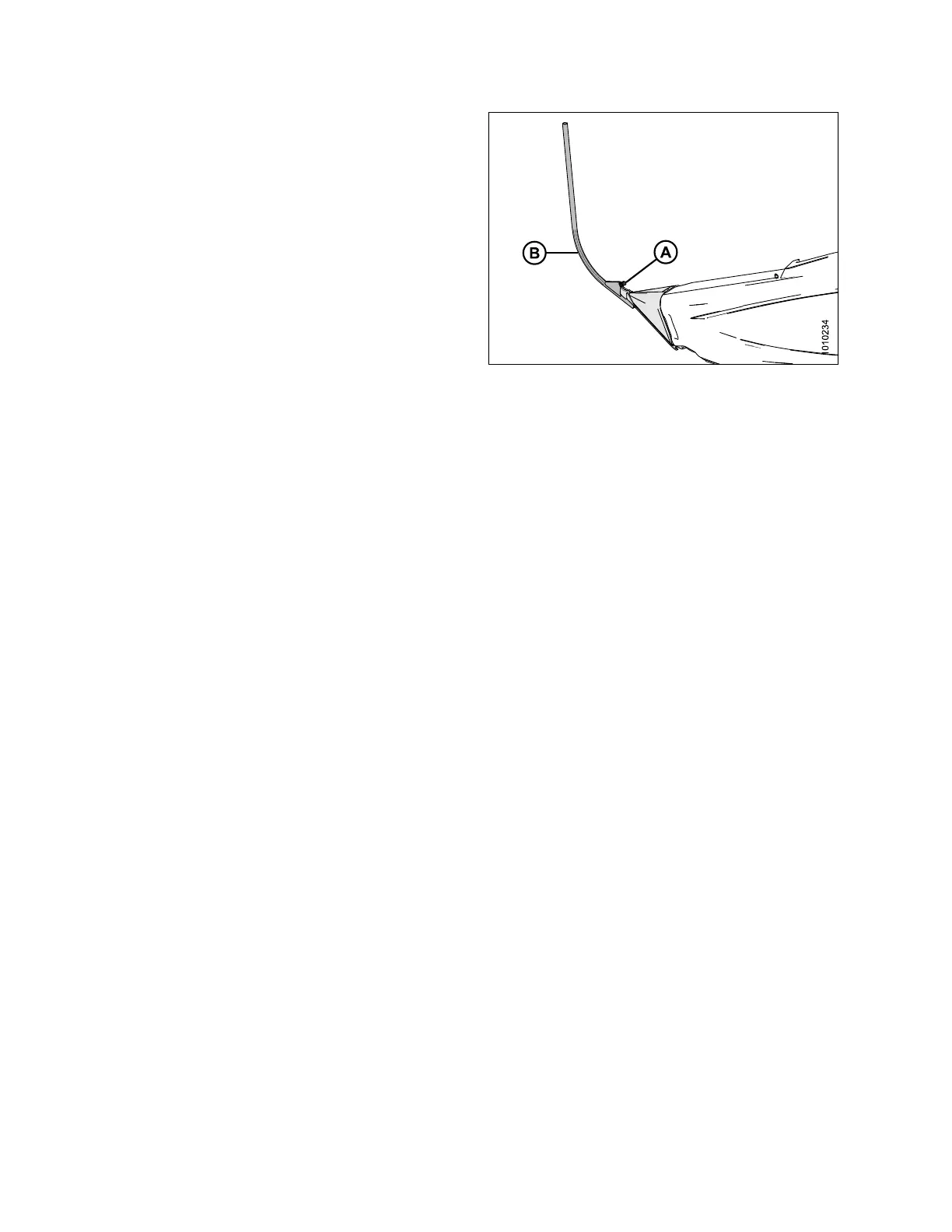

Figure 3.174: Divider Rod on Crop Divider
2. Position crop divider rod (B) on tip of crop divider as
shown, and tighten bolt (A).
3. Repeat procedure at opposite end of header.
3.4.11 Installing Options
1. Retrieve kits supplied as options with header and install them according to instructions supplied with each kit.
2. Proceed to 4 Performing Predelivery Checks, page 89.
ASSEMBLING HEADER AND ADAPTER
