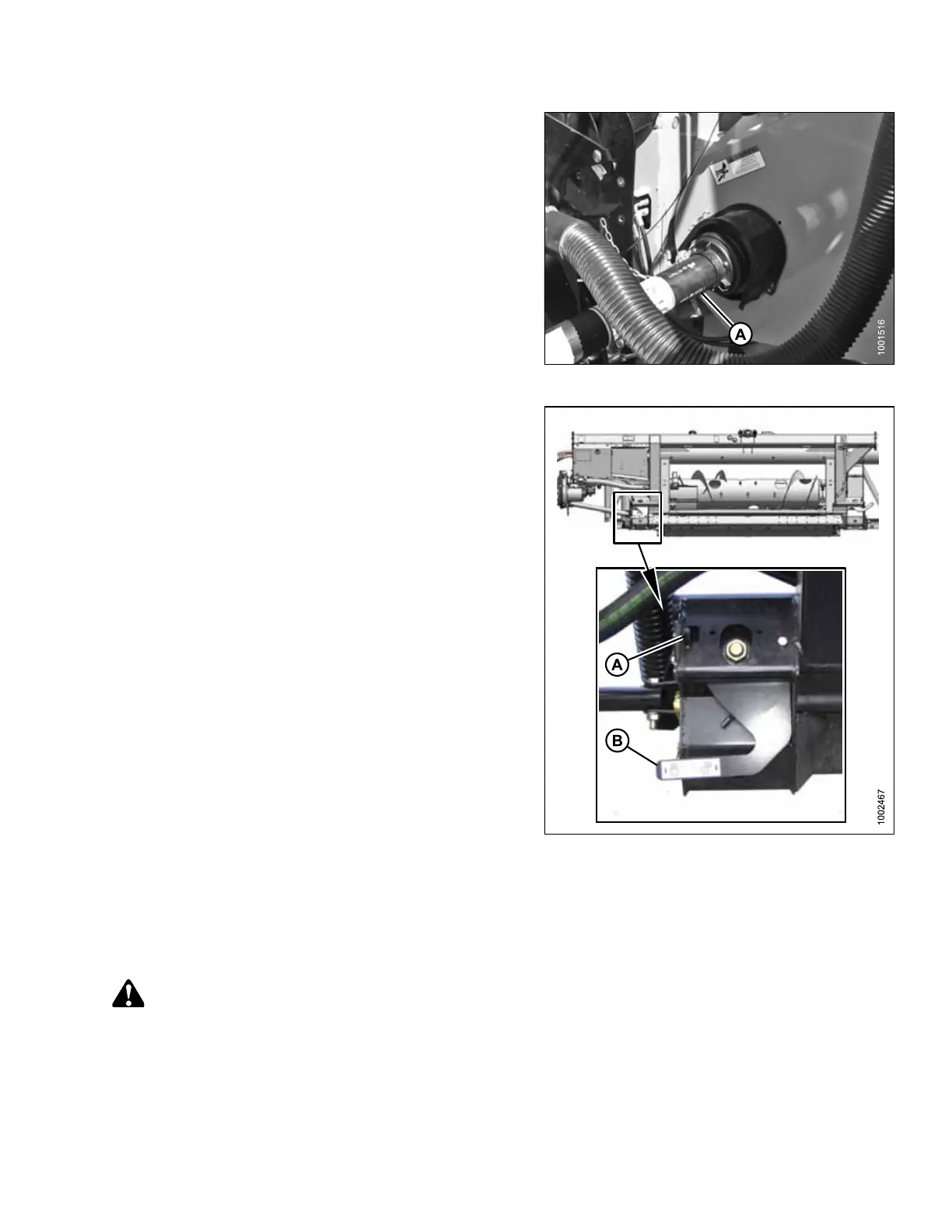

Figure 3.136: Driveline and Output Shaft
18. Attach driveline (A) to combine output shaft.
Figure 3.137: Float Lock in UNLOCK Position
19. Disengage each adapter float lock by moving latch (A)
away from adapter and moving both header float lock
levers (B) down (UNLOCK).
20. Proceed to 3.4 Completing Header Assembly, page 79.
3.3.5 New Holland Combines
Attaching Header to New Holland CR/CX Combine
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
ASSEMBLING HEADER AND ADAPTER
