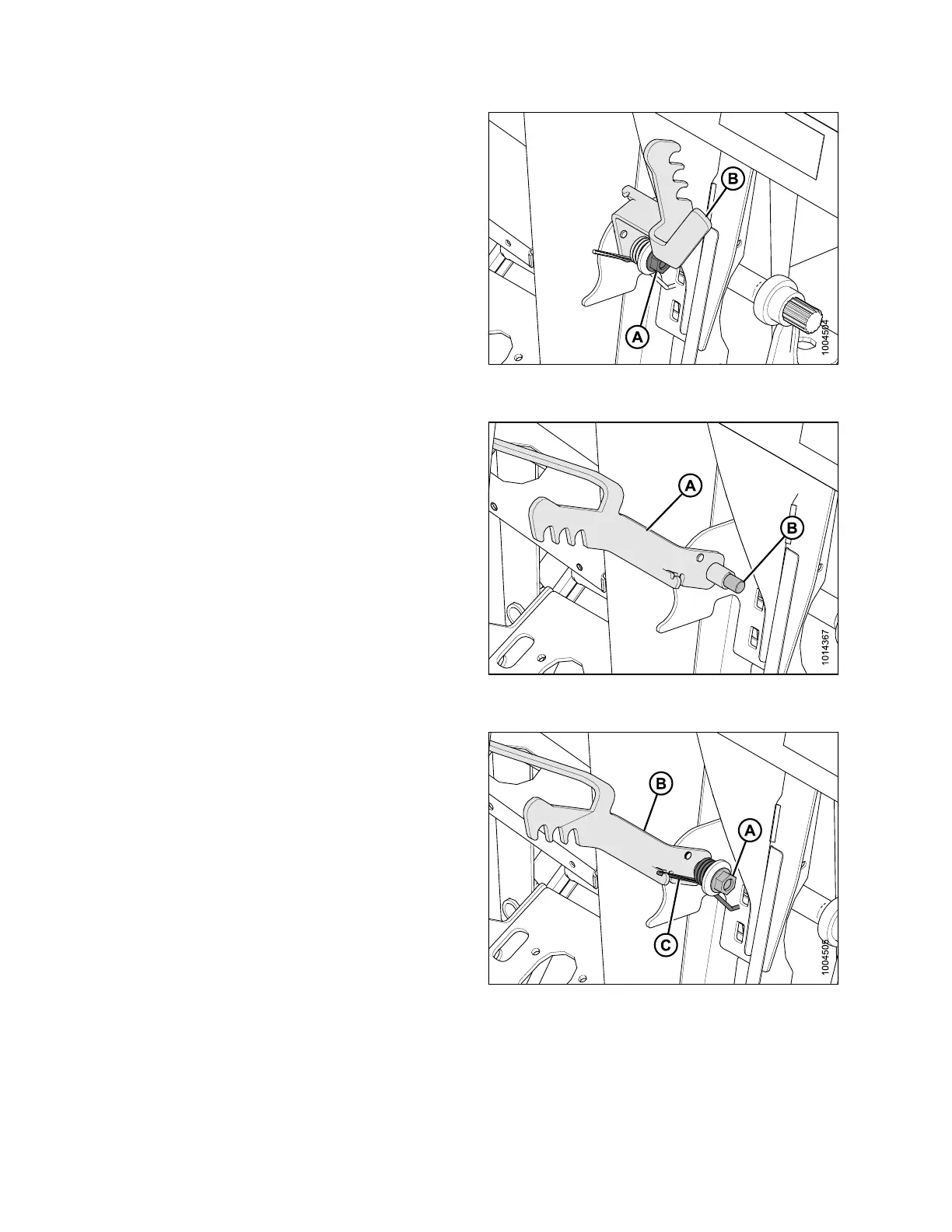

Figure 3.138: Feeder House Lever Lock
on CA25
1. On upper left of CA25, remove nut (A) and flip lever (B)
horizontally.
Figure 3.139: Feeder House Lever Lock
on CA25
2. Position lever (A) onto stud (B).
Figure 3.140: Feeder House Lever Lock
on CA25
3. Place spring arm (C) into hook on lever (B) to preload it,
and tighten nut (A) with washer.
