214325 248 Revision A
Adjusting Auto Reel Speed (CLAAS 700 Series)
Adjust auto reel speed as follows:
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to
combine operator’s manual for updates.

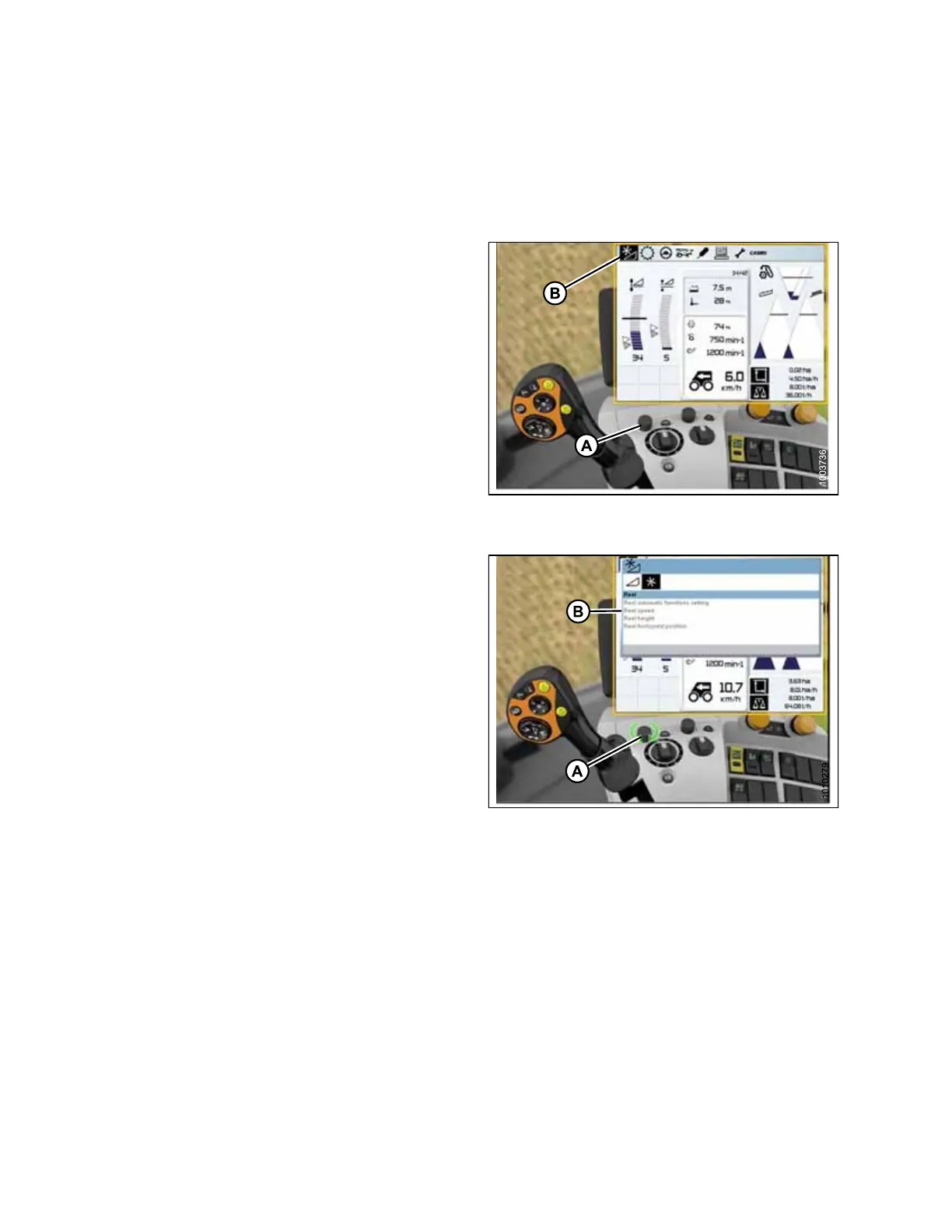

Figure 5.235: CLAAS Combine Display,
Console, and Joystick
1. Turn control knob (A) to highlight HEADER/REEL
icon (B), and press control knob (A) to select it. The
HEADER/REEL dialog menu opens.
Figure 5.236: CLAAS Combine Display,
Console, and Joystick
2. Turn control knob (A) to select REEL SPEED (B), and
adjust reel speed (if you are NOT using Auto Reel
Speed). A graph displays in dialog menu.
SETTING UP AUTO HEADER HEIGHT CONTROL
