214325 249 Revision A

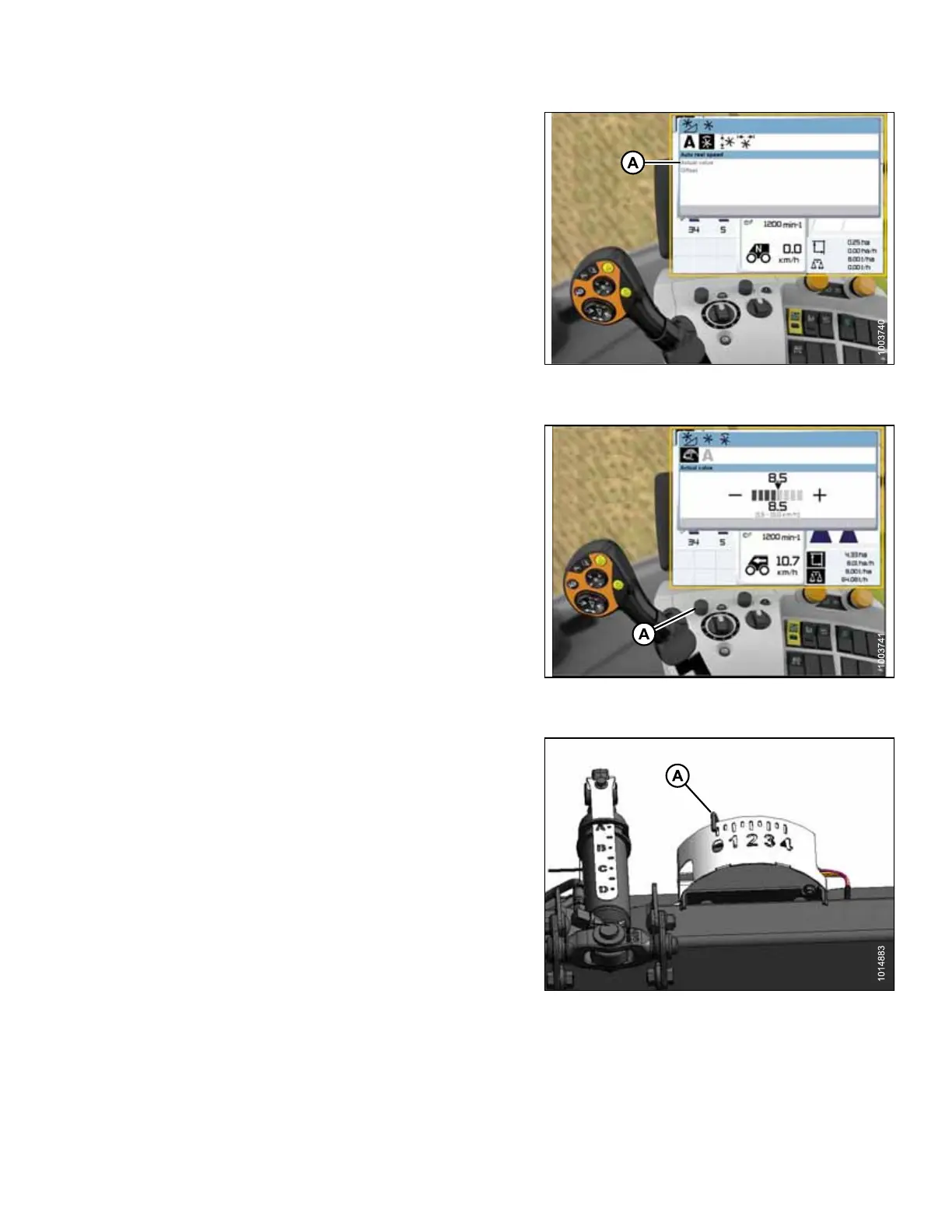

Figure 5.237: CLAAS Combine Display,
Console, and Joystick
3. Select ACTUAL VALUE (A) from AUTO REEL SPEED
dialog menu (if you are using Auto Reel Speed). The
ACTUAL VALUE indicates auto reel speed.
Figure 5.238: CLAAS Combine Display,
Console, and Joystick
4. Use control knob (A) to change reel speed.
Figure 5.239: Float Indicator
NOTE:
In most cases, ideal ground pressure is one number
higher than value on float indicator with header off
ground. For example, if float indicator needle (A) is
positioned at 0 with header off ground, then ideal
ground pressure will be achieved with needle
positioned at 1. Operating with heavier pressures can
wear cutterbar wearplate prematurely.
SETTING UP AUTO HEADER HEIGHT CONTROL
