214325 24 Revision A

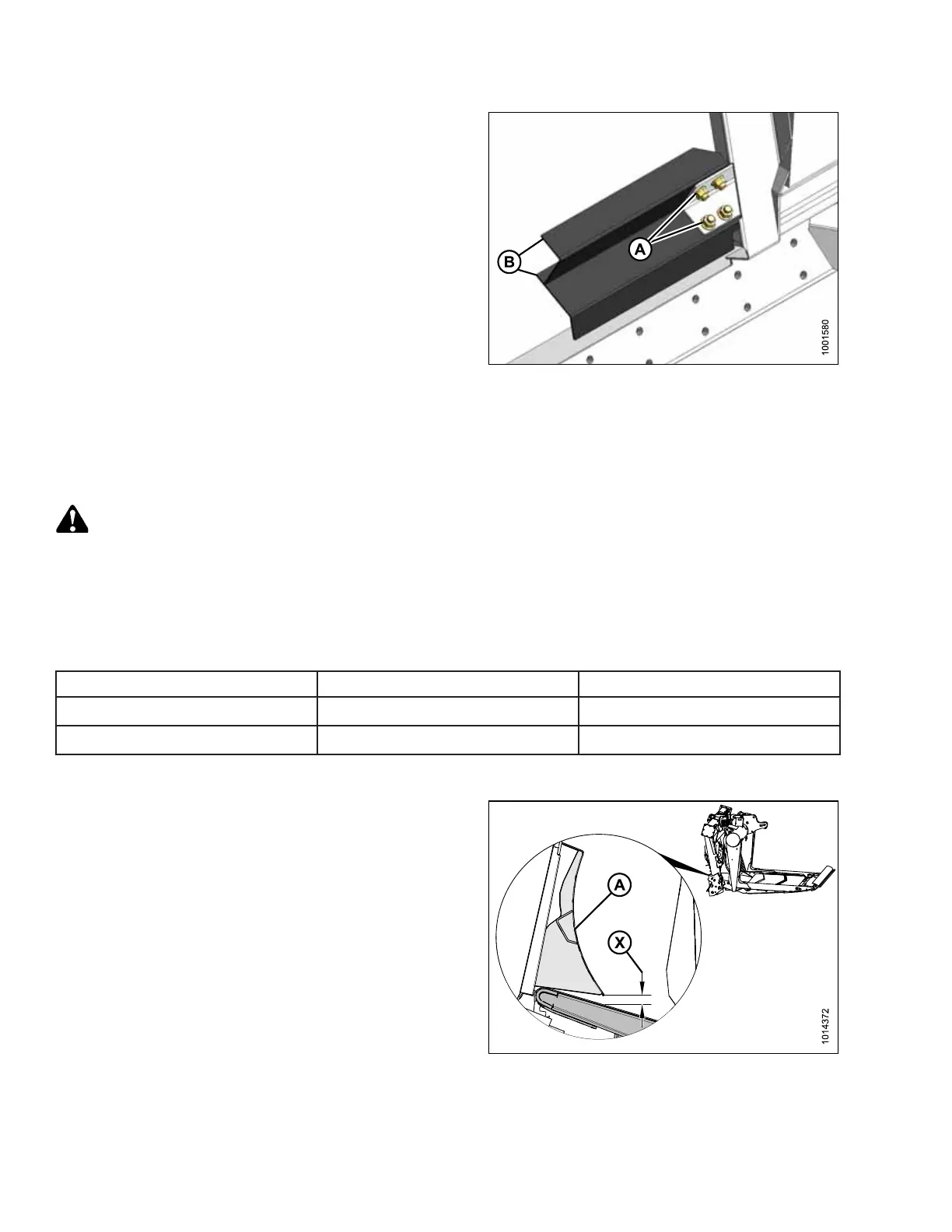

Figure 3.20: Auger Stripper Bar
1. Remove four bolts (A) and nuts securing bars (B) to
adapter frame, and remove bars.
2. Repeat for opposite set of stripper bars.
3. Proceed to 3.3 Attaching Header to Combine, page 26.
3.2.4 Replacing Feeder Deflectors: New Holland CR Combines
If header is configured for a New Holland CR960, 9070, or 9080 combine, adapter has a factory-installed feeder
deflector kit to improve feeding into feeder house. The kit can be replaced if necessary.
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under machine for any reason.
The FD75/CA25 combine completion package for New Holland models includes both a short feeder kit (installed at
factory) and a long feeder kit for narrow feeder house combines. Refer to Table 3.1, page 24.
Table 3.1 CA25 Feeder Kits for CR Model Combines
Combine Model Feeder House Size Feeder Kit Size
CR970, 9070, 9080
Wide
Short: 200 mm (7-7/8 in.)
CR960, 9060, 940, 9040
Narrow
Long: 325 mm (12-13/16 in.)
If required, replace feeder deflectors as follows:
Figure 3.21: Side View of Deflector
1. Determine position of existing deflector (A) by
measuring gap (X) between deflector’s forward edge
and pan. Record this measurement.
ASSEMBLING HEADER AND ADAPTER
