214325 25 Revision A

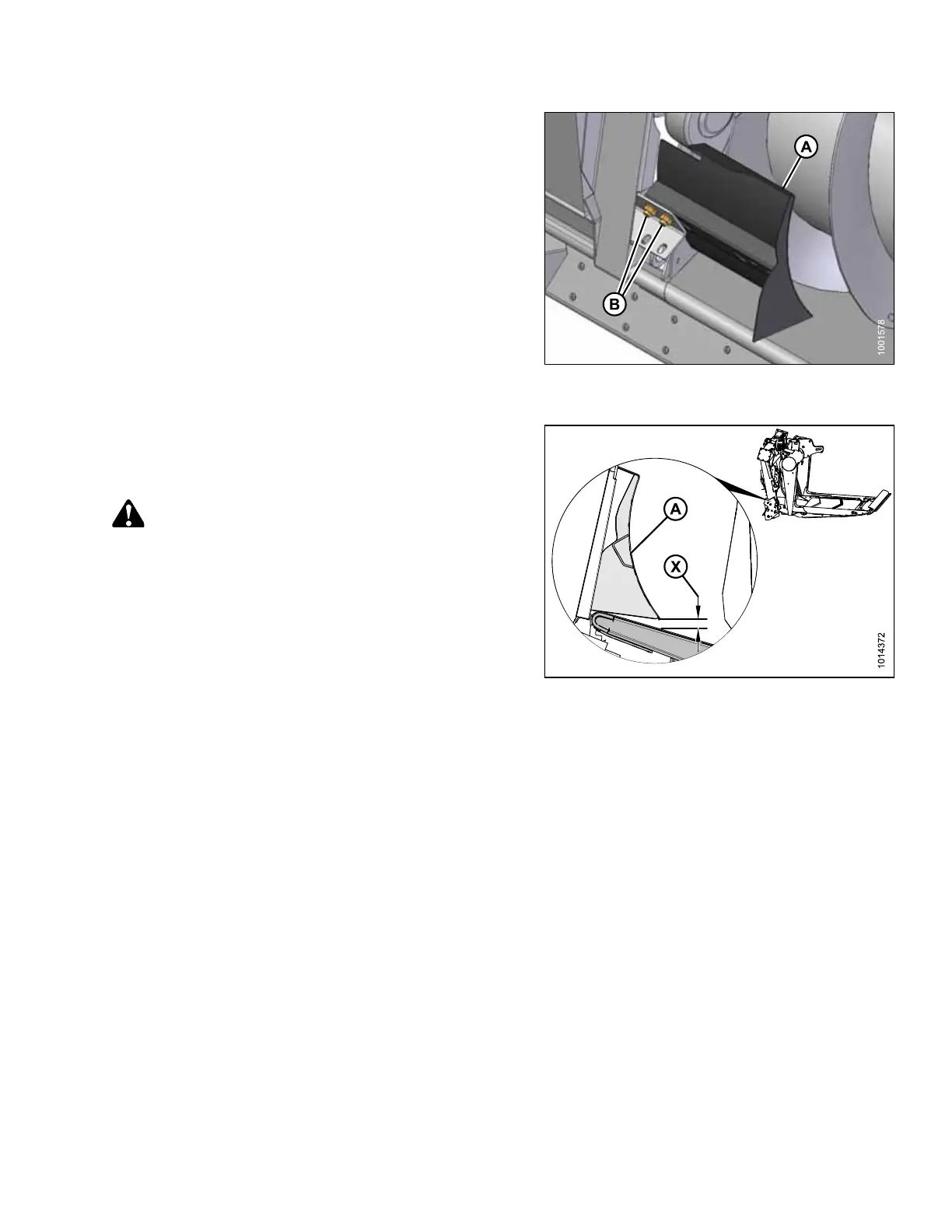

Figure 3.22: Replacement Deflector: Left Shown
– Right Opposite
2. Remove two bolts and nuts (B) securing deflector (A) to
adapter frame and remove deflector.
3. Position replacement deflector and reinstall bolts and
nuts (B). Do NOT tighten bolts.
Figure 3.23: Side View of Deflector
4. Set gap (X) to dimension recorded in Step 1, page 24
and tighten bolts.
5. Repeat for opposite deflector.
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
6. Attach header to a combine and fully extend center-link.
7. Turn off combine and remove key from ignition.
8. Recheck gap (X) between deflector (A) and the pan.
NOTE:
The minimum gap when attached to combine should be
22 +/- 3 mm (7/8 +/– 1/8 in.).
9. If necessary, detach header from combine and adjust
deflector to achieve minimum gap.
ASSEMBLING HEADER AND ADAPTER
