214325 135 Revision A
4.19 Checking and Adjusting Endshields
Plastic endshields are subject to expansion or contraction caused by large temperature variations. The position of
top pin and lower catch can be adjusted to compensate for dimensional changes.

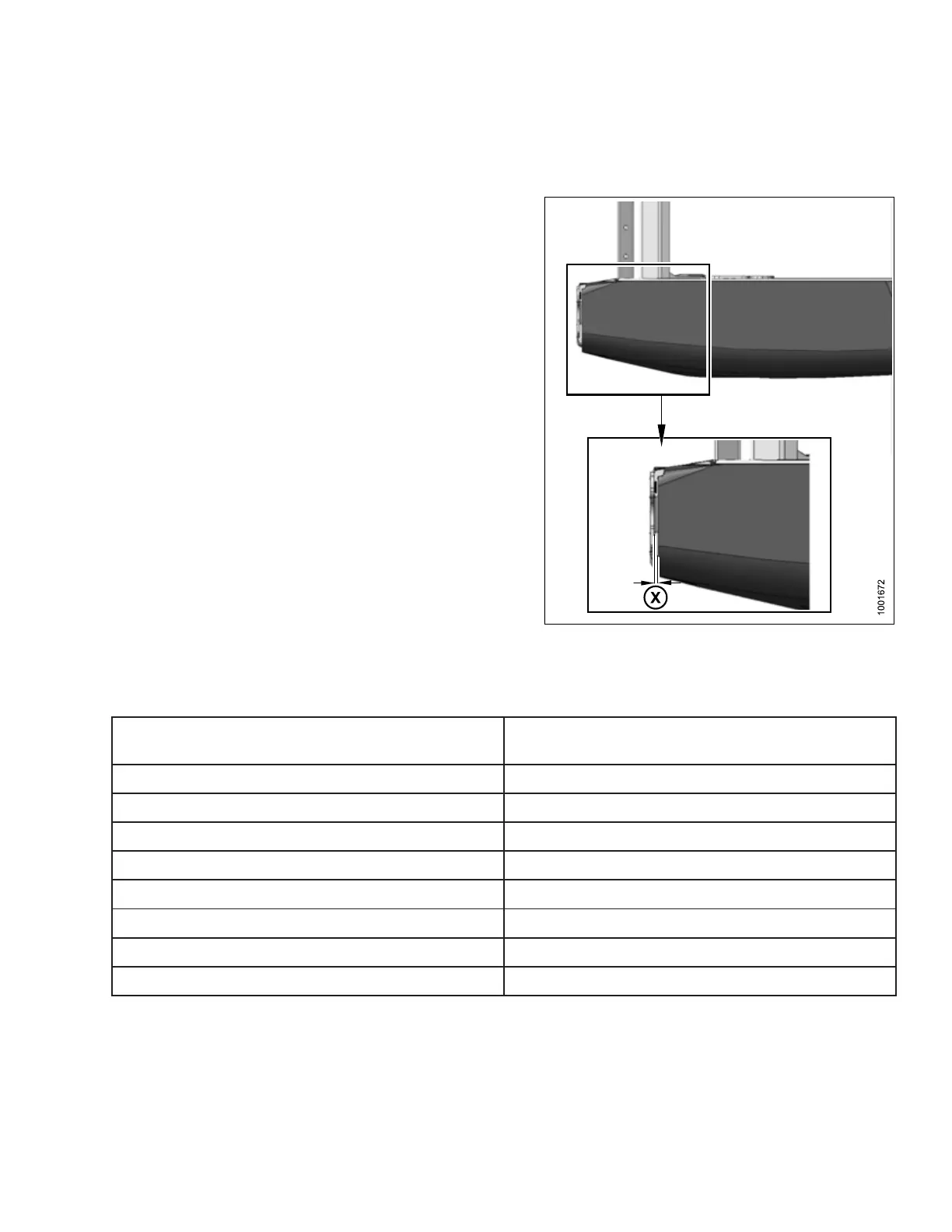

Figure 4.84: Gap Between Endshield and
Header Frame
1. Check gap (X) between front end of shields and header
frame and compare to values in Table 4.6, page 135.
Table 4.6 Endshield Gap at Various Temperatures
Temperature °C (°F)
Gap (X)
mm (in.)
–4 (25) 28 (1–1/10)
7 (45) 24 (1)
18 (65) 20 (13/16)
29 (85) 16 (5/8)
41 (105) 12 (1/2)
52 (125) 8 (5/16)
63 (145) 4 (3/16)
89 (165)
0
NOTE:
If endshield gap is correct, skip to next procedure. If adjustment is required, follow these steps:
PERFORMING PREDELIVERY CHECKS
