214325 105 Revision A
4.11 Checking and Adjusting Header Float
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
NOTE:
Ensure all header options are installed before adjusting float.

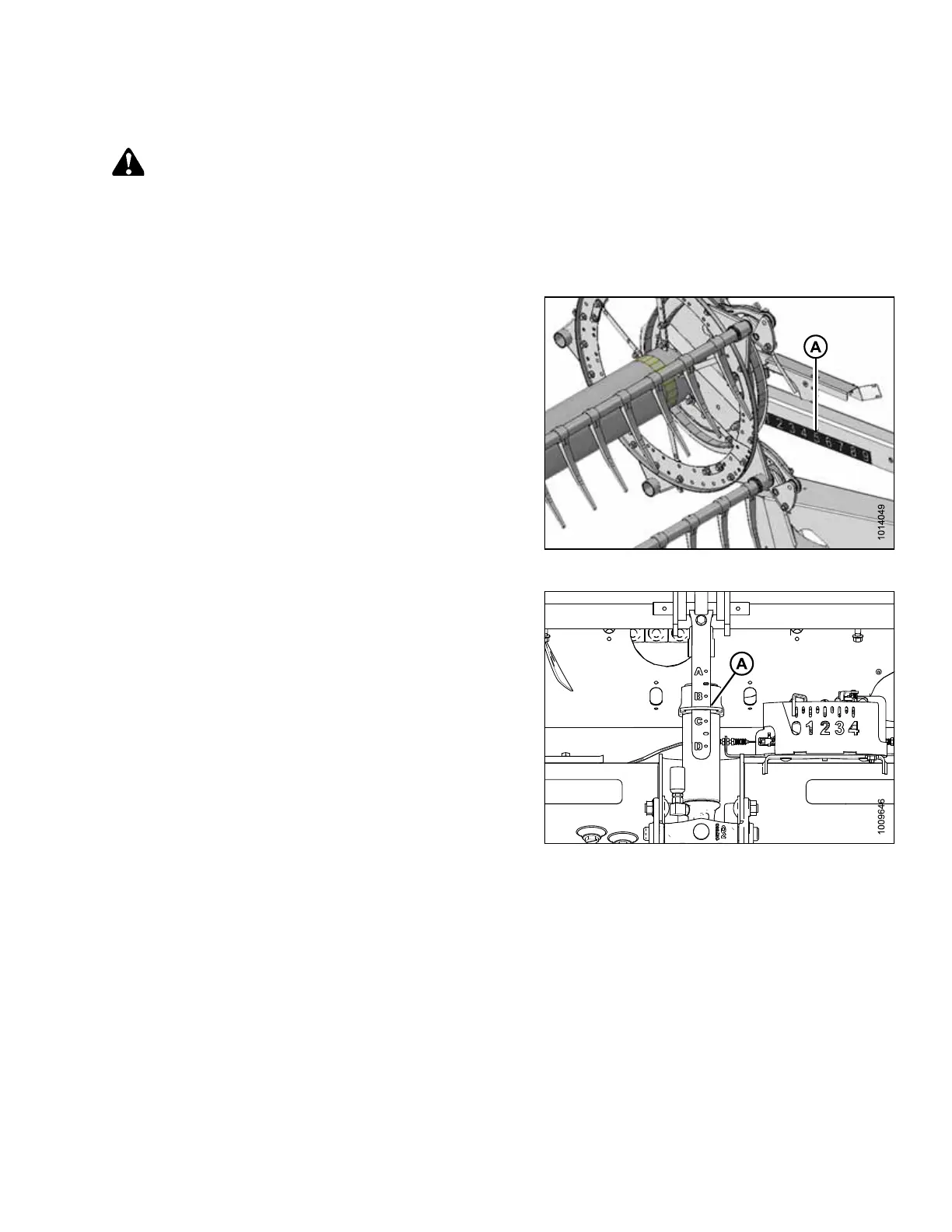

Figure 4.28: Fore-Aft Position
1. Park combine on level surface and lower reel fully.
2. Adjust fore-aft position to between 5 and 6 on position
indicator decal (A) located on right reel arm.
Figure 4.29: Center-Link
3. Adjust center-link to between B and C on indicator (A).
4. Position cutterbar 200–300 mm (8–12 in.) off
the ground.
5. Stop engine and remove key from ignition.
PERFORMING PREDELIVERY CHECKS
