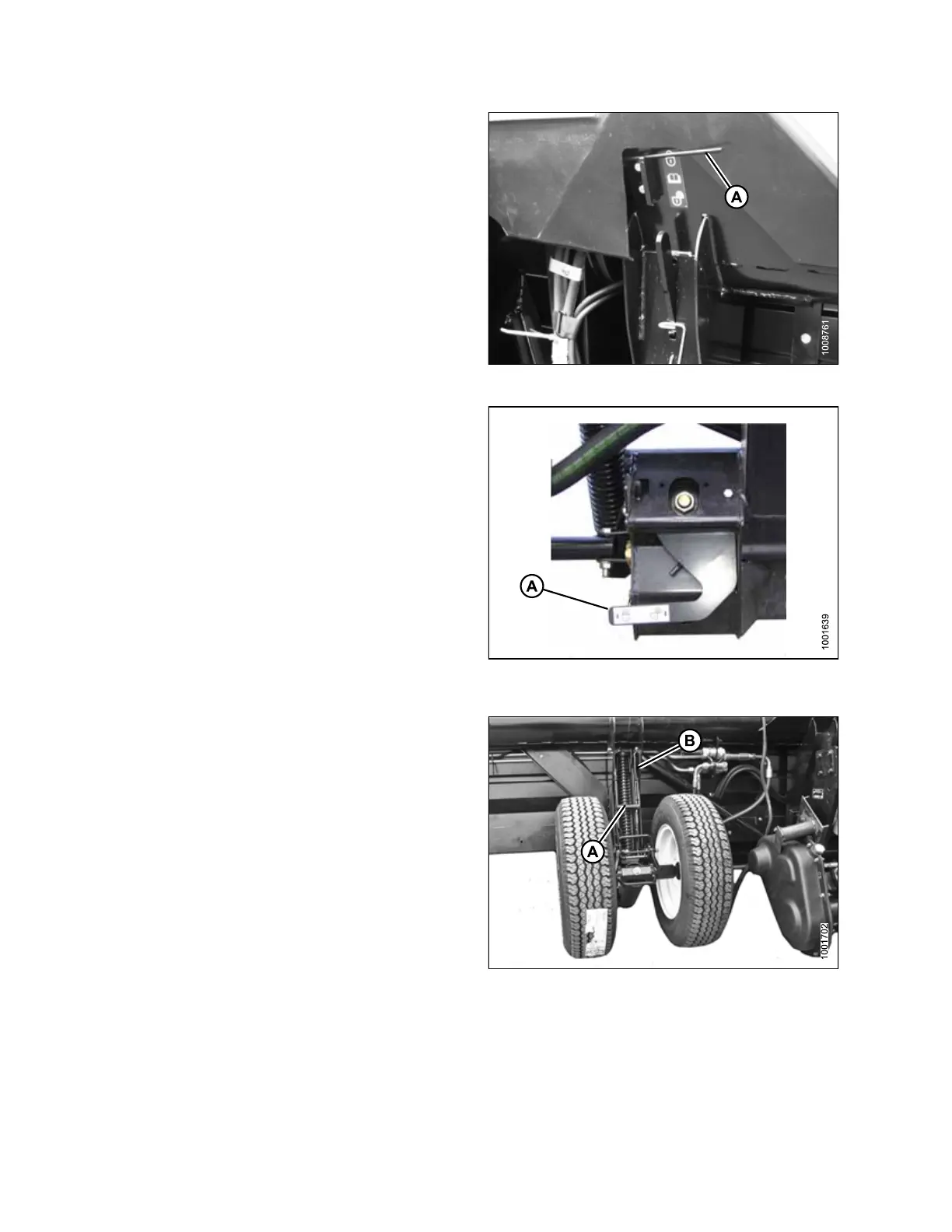

Figure 4.30: Wing Lock in Lock Position
6. Place wing lock spring handles (A) in lock
(upper) position.
Figure 4.31: Header Float Lock in
Unlock Position
7. Check that both header float lock levers (A) are in
down (UNLOCK) position.
Figure 4.32: Left Wheel
8. Place stabilizer wheels and slow speed transport
wheels (if equipped) in storage position as follows:
a. Support wheel weight by lifting slightly with one
hand, and pull up on handle (A) to release the lock.
b. Lift wheels to desired height, and engage support
channel into slot (B) in upper support.
c. Push down on handle (A) to lock.
