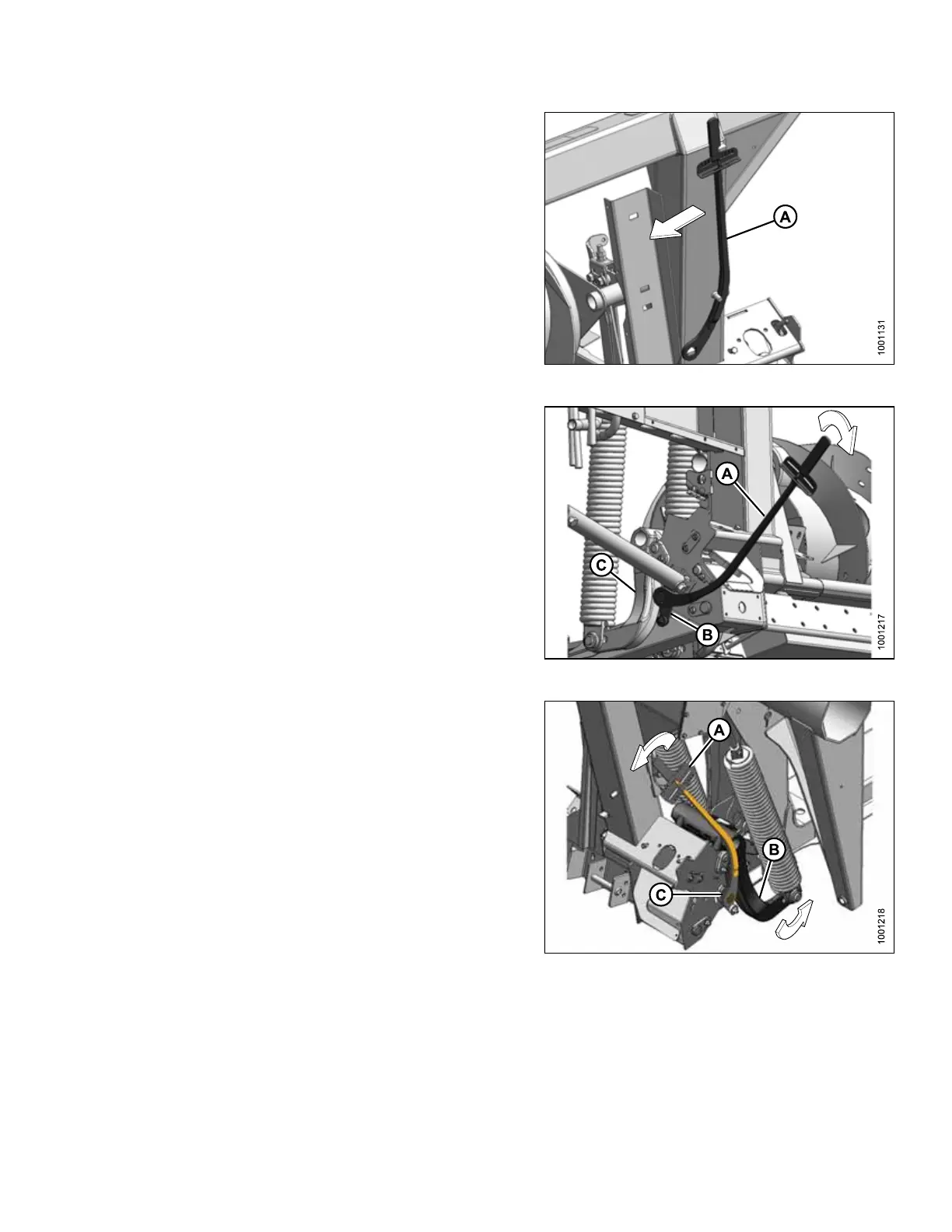

Figure 4.33: Torque Wrench
9. Remove supplied torque wrench (A) from its storage
position at right of adapter frame. Pull slightly in
direction shown to disengage wrench from the hook.
Figure 4.34: Left Side of Adapter
Figure 4.35: Right Side of Adapter
10. Place supplied torque wrench (A) onto float lock (B).
Note position of wrench for checking left or right side.
11. Push down on wrench to rotate bell crank (C) forward.
PERFORMING PREDELIVERY CHECKS
