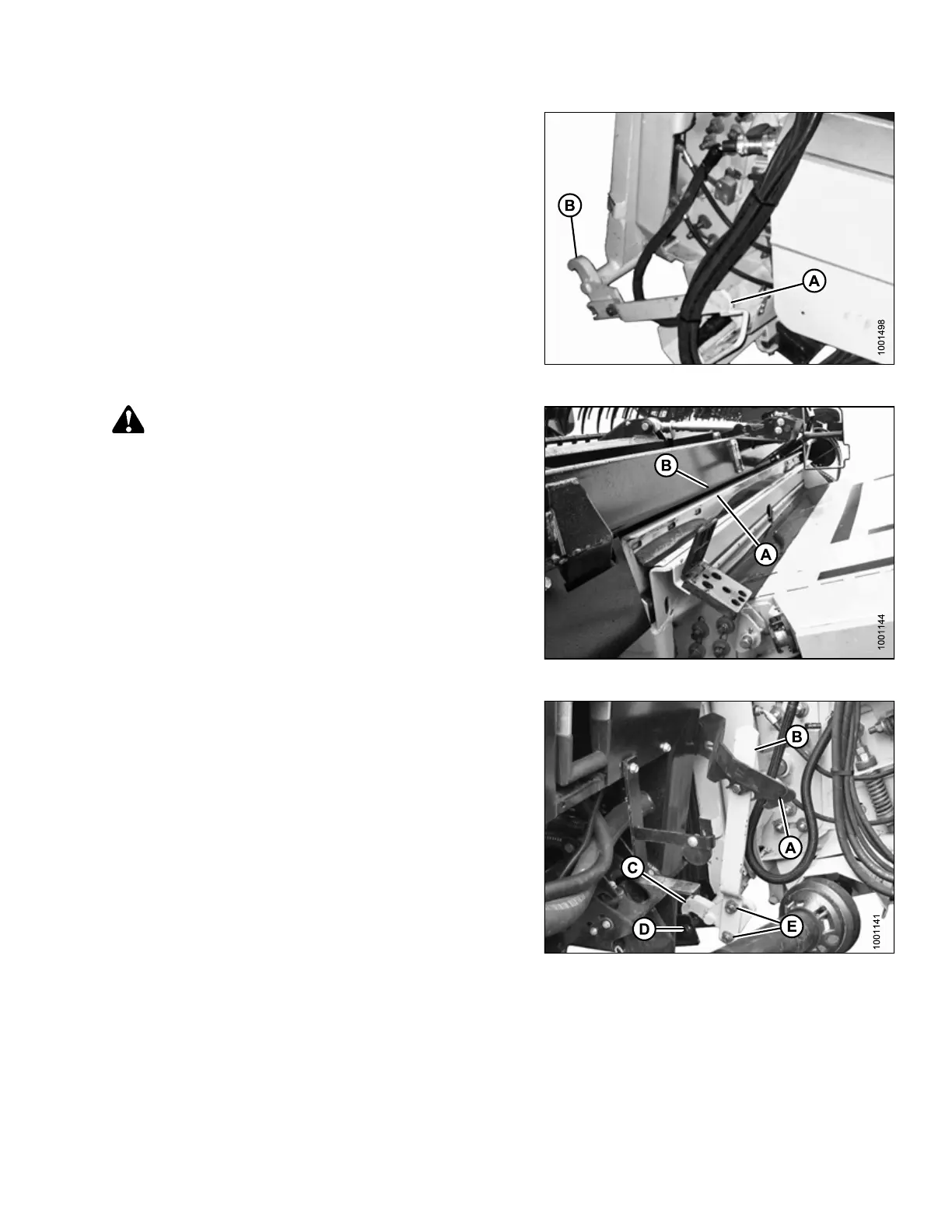

Figure 3.141: Feeder House Locks
4. Ensure handle (A) is positioned so hooks (B) can
engage CA25 adapter.
Figure 3.142: Header on Combine
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
5. Start engine and slowly drive combine up to CA25 until
feeder house saddle (A) is directly under CA25 top
cross member (B).
6. Raise feeder house slightly to lift header ensuring
feeder saddle is properly engaged in CA25 frame.
7. Stop engine and remove key from ignition.
Figure 3.143: Feeder House Locks
8. Lift lever (A) on CA25 on left side of feeder house, and
push handle (B) on combine to engage locks (C) on
both sides of feeder house.
9. Push down on lever (A) so slot in lever engages handle
and locks handle in place.
10. Loosen bolts (E) and adjust lock (C) if lock does not
fully engage pin on CA25 when lever (A) and handle (B)
are engaged. Retighten bolts.
ASSEMBLING HEADER AND ADAPTER
