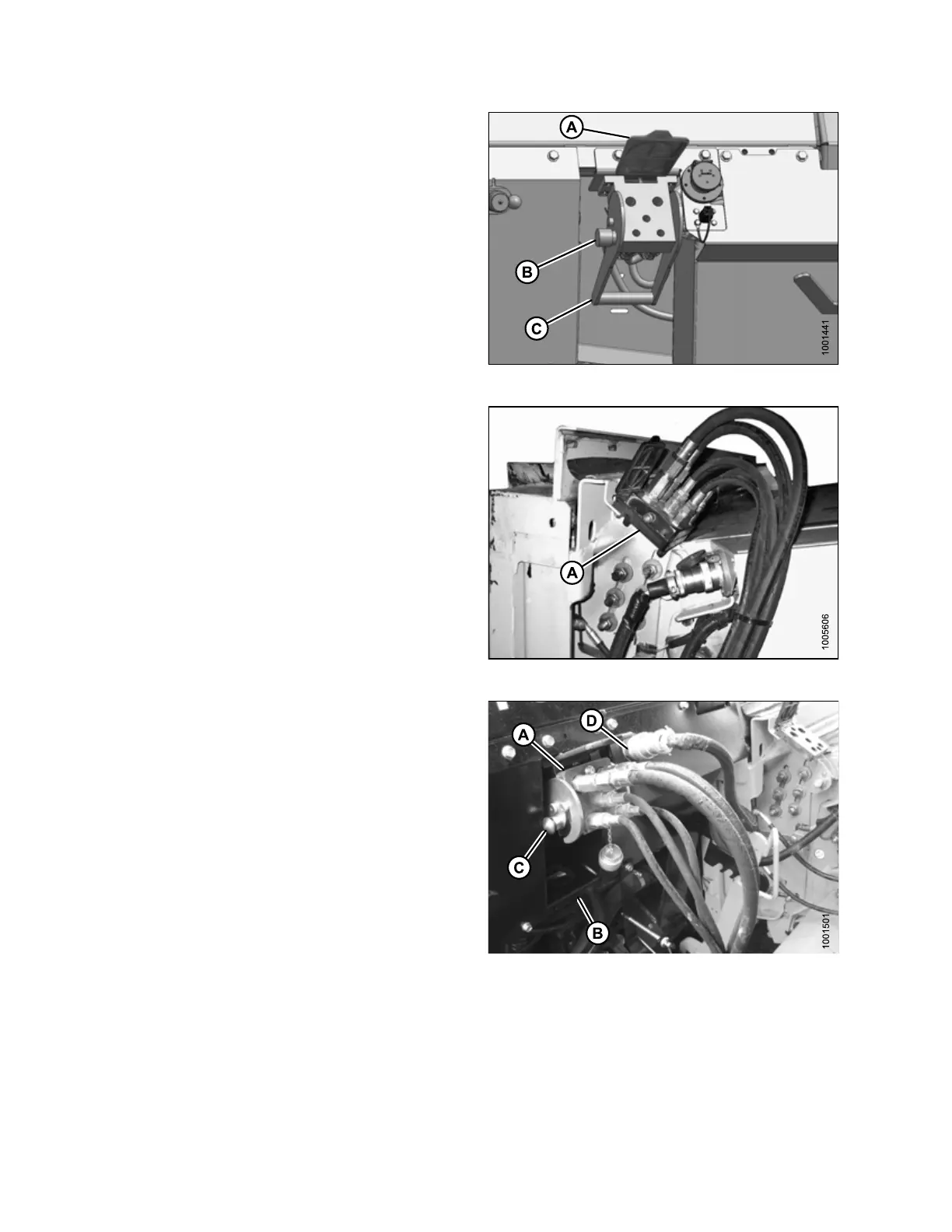

Figure 3.144: Adapter Receptacle
11. Open receptacle cover (A) on CA25.
12. Push in lock button (B) and pull handle (C) to full open
position.
13. Clean receptacle mating surfaces.
Figure 3.145: Combine Coupler
14. Remove hydraulic quick coupler (A) from storage plate
on combine, and clean mating surface of coupler.
Figure 3.146: Connections
15. Position coupler (A) onto CA25 receptacle, and push
handle (B) to engage pins into receptacle.
16. Push handle (B) to closed position until lock button (C)
snaps out.
17. Remove cover on CA25 electrical receptacle.
18. Remove connector (D) from combine.
19. Align lugs on connector (D) with slots in CA25
receptacle, and push connector onto receptacle. Turn
collar on connector to lock it in place.
ASSEMBLING HEADER AND ADAPTER
