214325 77 Revision A

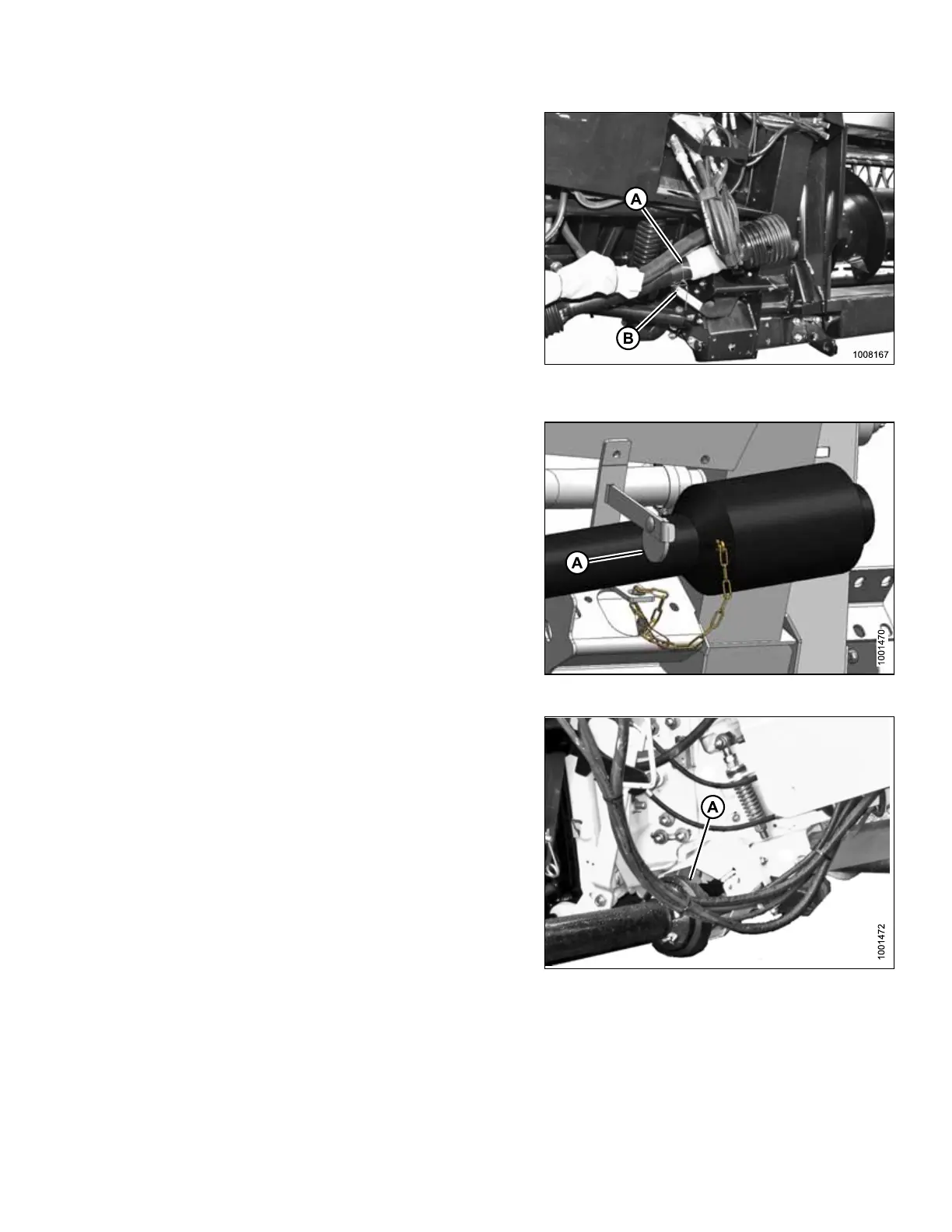

Figure 3.147: Shipping Wire on Driveline and
Float Lock Lever
20. Remove shipping wire (A) from driveline and float lock
lever (B).
Figure 3.148: Driveline
21. Rotate disc (A) on adapter driveline storage hook, and
remove driveline from hook.
Figure 3.149: Driveline and Output Shaft
22. Pull back collar on end of driveline, and push driveline
onto combine output shaft (A) until collar locks.
ASSEMBLING HEADER AND ADAPTER
