214325 72 Revision A

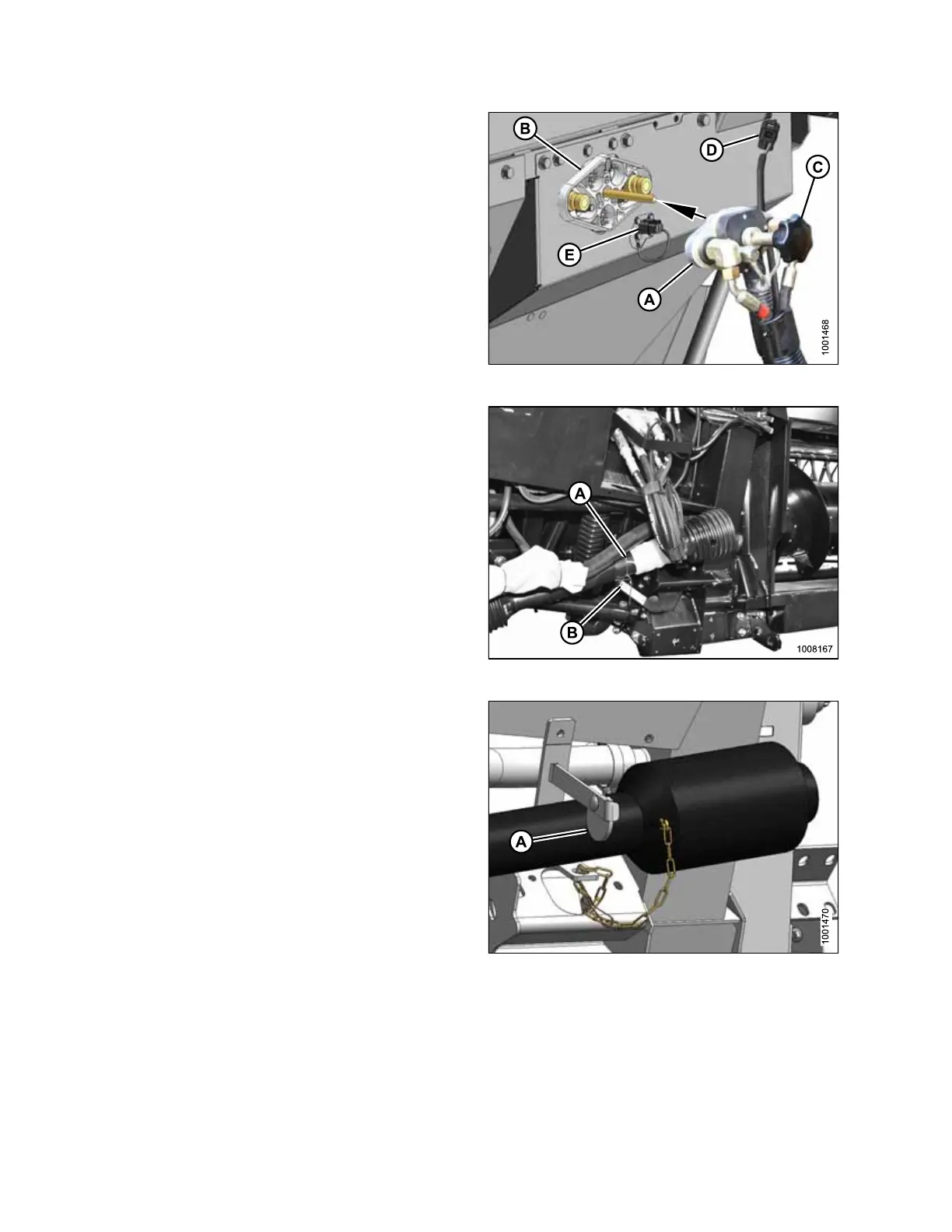

Figure 3.133: Coupler
13. Clean mating surface of coupler (A) and position onto
CA25 receptacle (B).
14. Turn knob (C) to secure coupler to receptacle.
15. Connect combine harness (D) to reel fore-aft/header tilt
selector receptacle (E).
Figure 3.134: Adapter Shipping Configuration
16. Remove shipping wire from driveline (A) and float
lock lever (B).
Figure 3.135: Driveline
17. Rotate disc (A) on adapter driveline storage hook, and
remove driveline from hook.
ASSEMBLING HEADER AND ADAPTER
