214325 186 Revision A

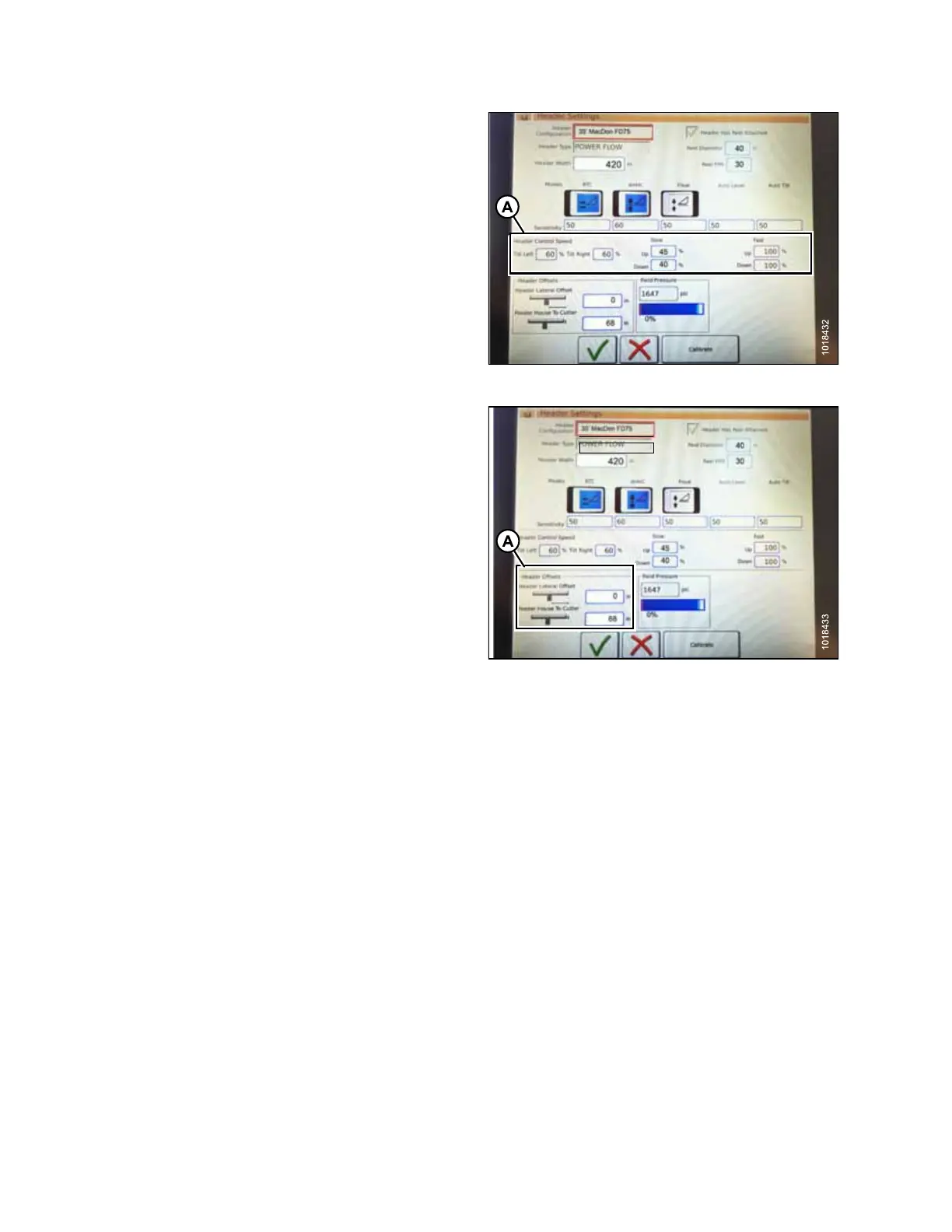

Figure 5.98: Header Speed Control Settings
3. Header Speed: Header tilt and raise/lower speed is
adjusted in HEADER CONTROL SPEED area (A) of
HEADER SETTINGS page.
• Tilt left and right is lateral tilt of combine faceplate.
• Header up and down (slow and fast speeds) is a
two-stage button with slow speed on first detent and
fast on second.
NOTE:
Recommended header control speed starting points for
MacDon headers are:
• Slow: 45 up/40 down
• Fast: 100 up/100 down
Figure 5.99: Header Offset Settings
4. Header Offsets (A): Offset distances are important for
yield mapping. There are two dimensions that can be
adjusted on HEADER SETTINGS page:
• Header Lateral Offset: distance between centerline
of header and centerline of machine. This should be
set at 0 for a MacDon header.
• Feeder House to Cutter: distance from machine
interface to cutterbar. This should be set at 68 for a
MacDon header.
SETTING UP AUTO HEADER HEIGHT CONTROL
