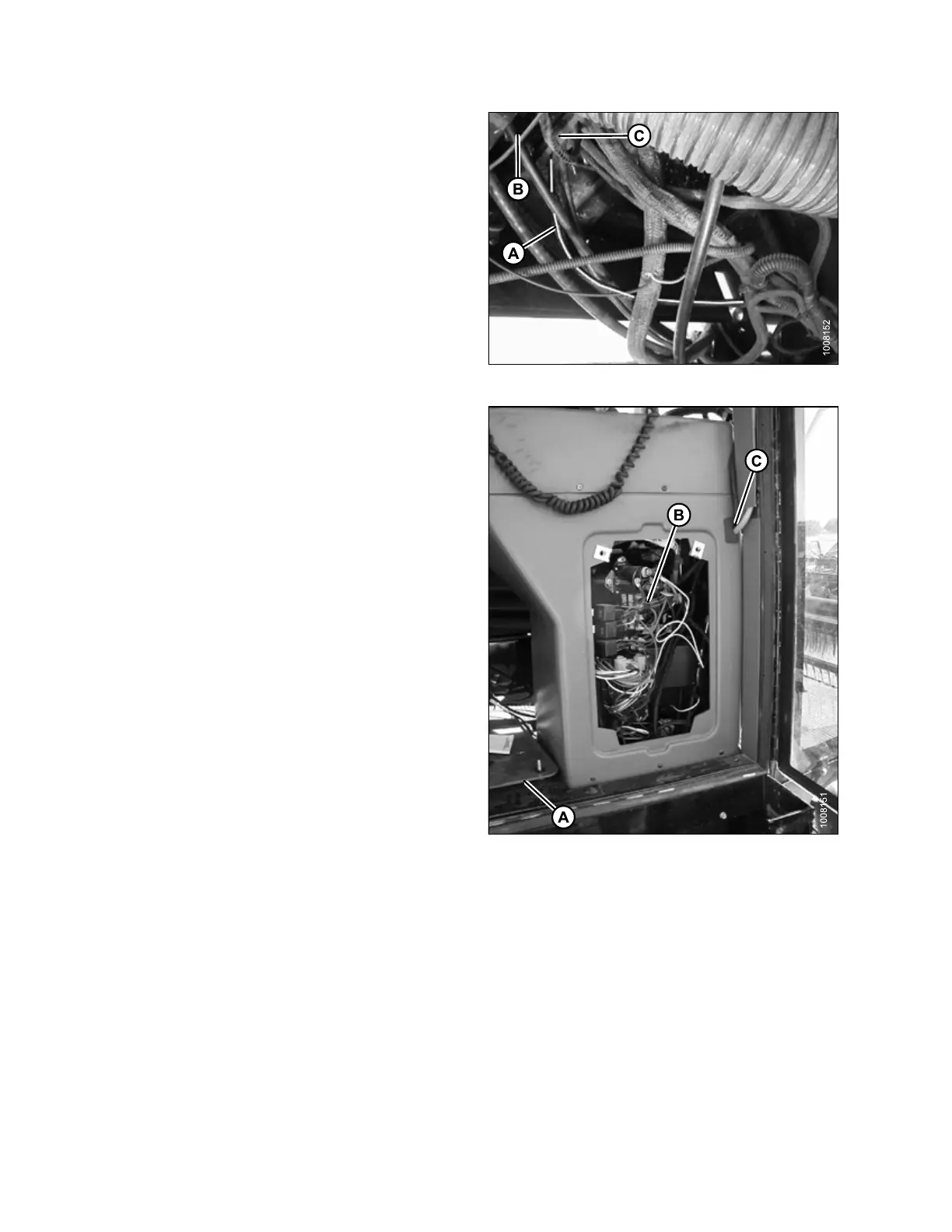

Figure 3.28: Harness through Cab Floor
5. Route the switch harness (A) under the cab, through
cab floor, and into console (B) at the foam seal (C).
Figure 3.29: Switch Compartment
6. Remove the console cover (A) as shown.
7. Connect the switch harness to the power supply inside
the console at (B).
• The red wire from the in-line fuse goes to the
switched power supply (B).
• The double black wire goes to ground.
IMPORTANT:
Connecting the switch harness to an unswitched power
supply or cigarette lighter will supply constant power to
the header tilt side of the solenoid valve and drain the
combine battery during extended shutdown periods.
8. Route switch harness through grommet (C), and
replace cover (A).
