214325 116 Revision A

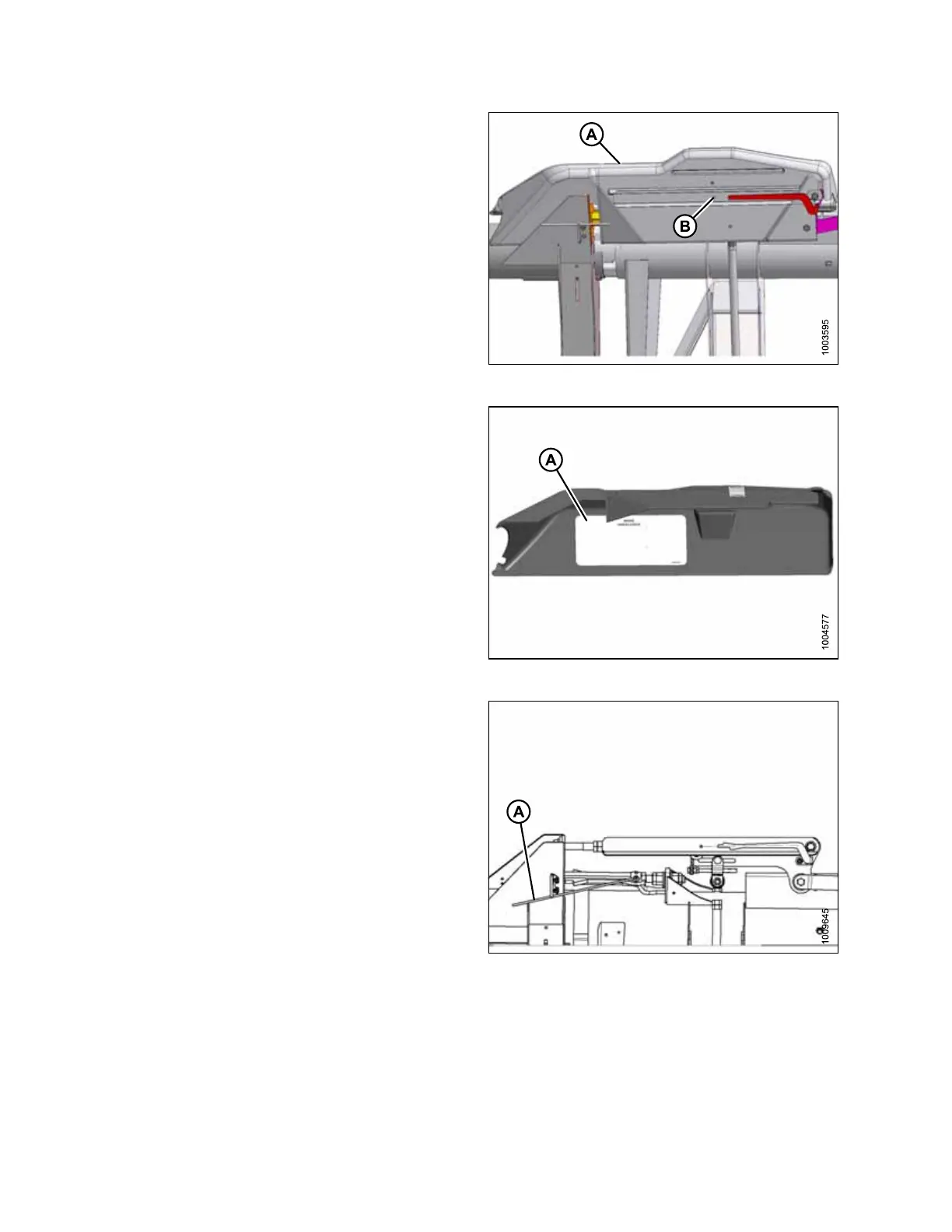

Figure 4.55: Linkage Cover
5. Remove linkage cover (A) by removing bolt (B).
Figure 4.56: Linkage Cover
NOTE:
Refer to the decal (A) inside each linkage cover.
Figure 4.57: Wing Lock in UNLOCK Position
6. Unlock the wings by moving handle (A) to lower
(UNLOCK) position.
PERFORMING PREDELIVERY CHECKS
