214325 33 Revision A

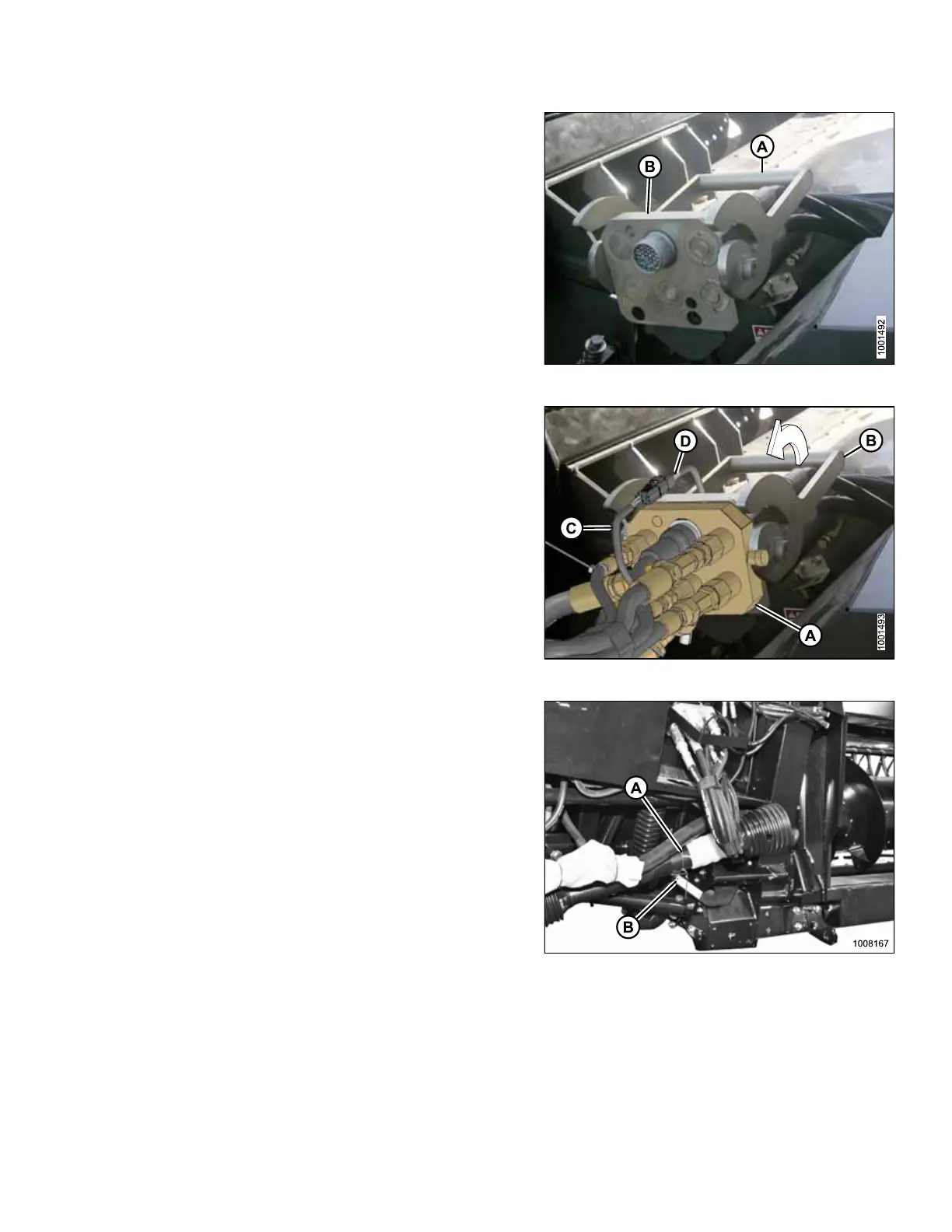

Figure 3.38: Combine Receptacle
9. Push handle (A) on combine to fully open position.
10. Clean mating surfaces of multicoupler (B) and
receptacle if necessary.
Figure 3.39: Multicoupler
11. Position multicoupler (A) onto combine receptacle, and
pull handle (B) to fully engage multicoupler into
receptacle.
12. Connect reel fore-aft/header tilt selector harness (C) to
combine harness (D).
Figure 3.40: Adapter Shipping Configuration
13. Remove shipping wire from driveline (A) and float
lock lever (B).
ASSEMBLING HEADER AND ADAPTER
