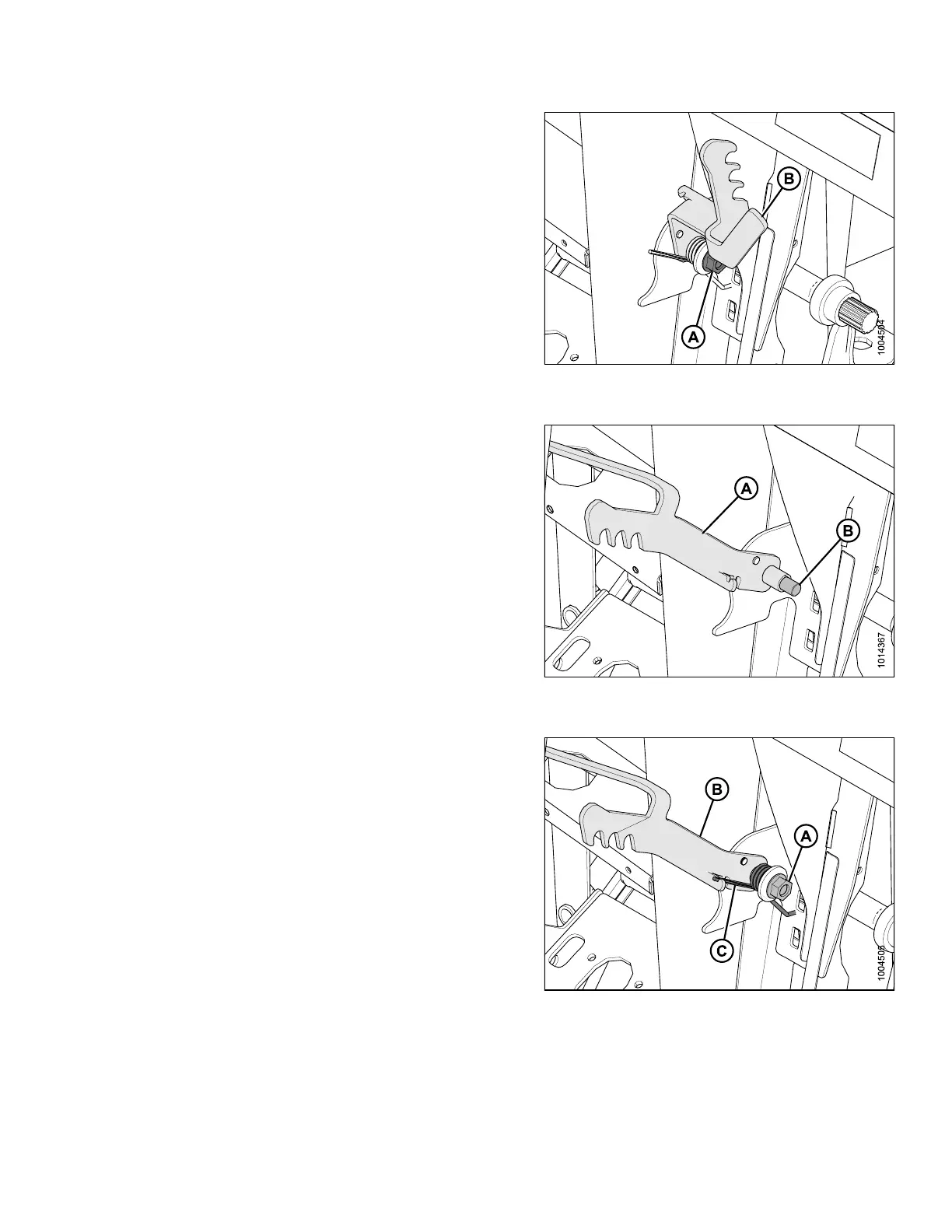

Figure 3.43: Feeder House Lever Lock on
Adapter
1. On upper left of combine adapter, remove nut (A) and
flip lever (B) horizontally.
Figure 3.44: Feeder House Lever Lock on
Adapter
2. Position lever (A) onto stud (B).
Figure 3.45: Feeder House Lever Lock on
Adapter
3. Place spring arm (C) into hook on lever (B) to preload it,
and tighten nut (A) with washer onto combine adapter.
ASSEMBLING HEADER AND ADAPTER
