214325 36 Revision A

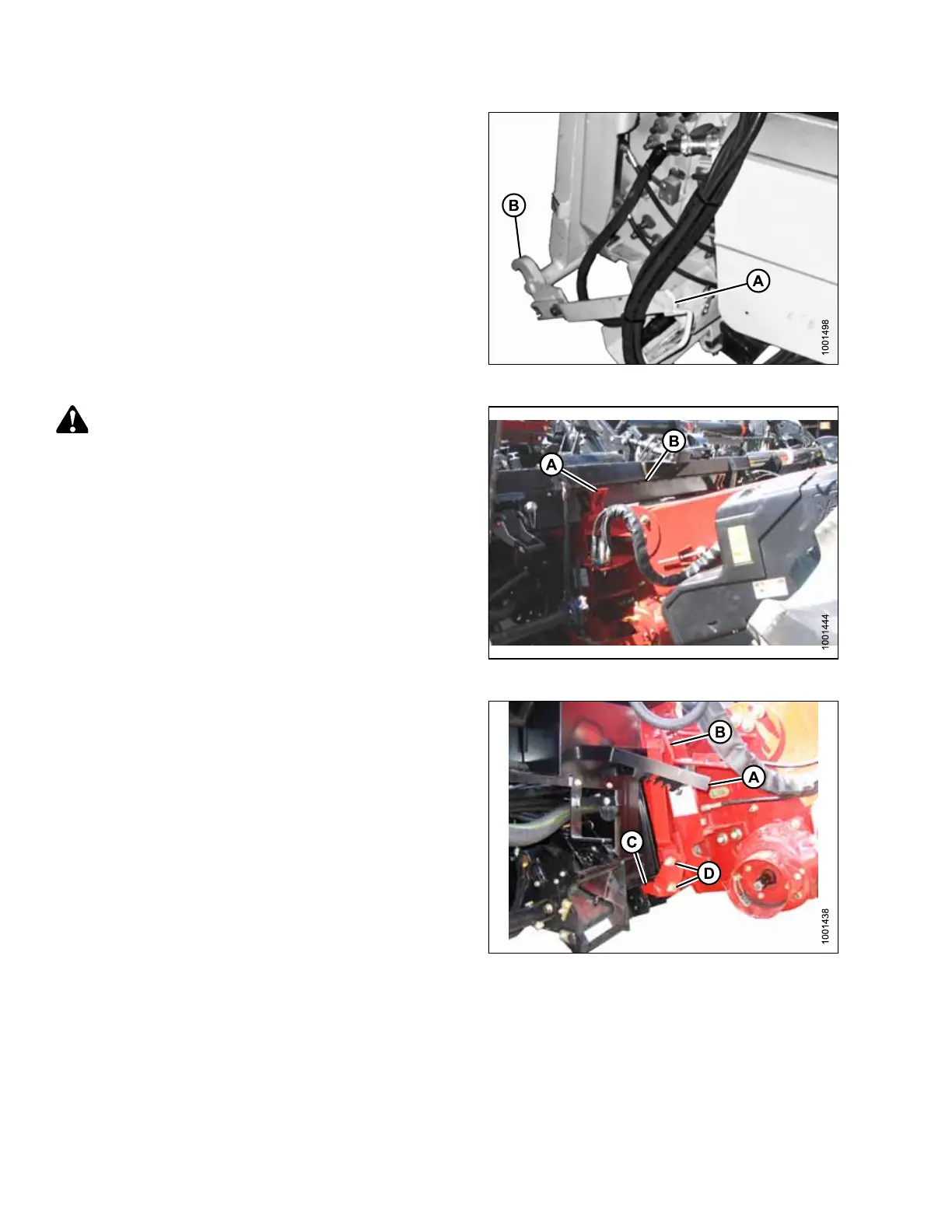

Figure 3.46: Feeder House Lock
4. On combine, ensure lock handle (A) is positioned so
hooks (B) can engage adapter.
Figure 3.47: Combine and Adapter
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
5. Start engine and slowly drive combine up to header
until feeder house saddle (A) is directly under adapter
top cross member (B).
6. Raise feeder house slightly to lift header, ensuring
feeder saddle is properly engaged in adapter frame.
7. Stop engine and remove key from ignition.
Figure 3.48: Combine and Adapter
8. On left of feeder house, lift lever (A) on adapter and
push handle (B) on combine to engage locks (C) on
both sides of feeder house.
9. Push down on lever (A) so slot in lever engages handle
and locks handle in place.
10. If lock (C) does not fully engage pin on adapter, loosen
bolts (D) and adjust lock. Retighten bolts.
ASSEMBLING HEADER AND ADAPTER
