214325 37 Revision A

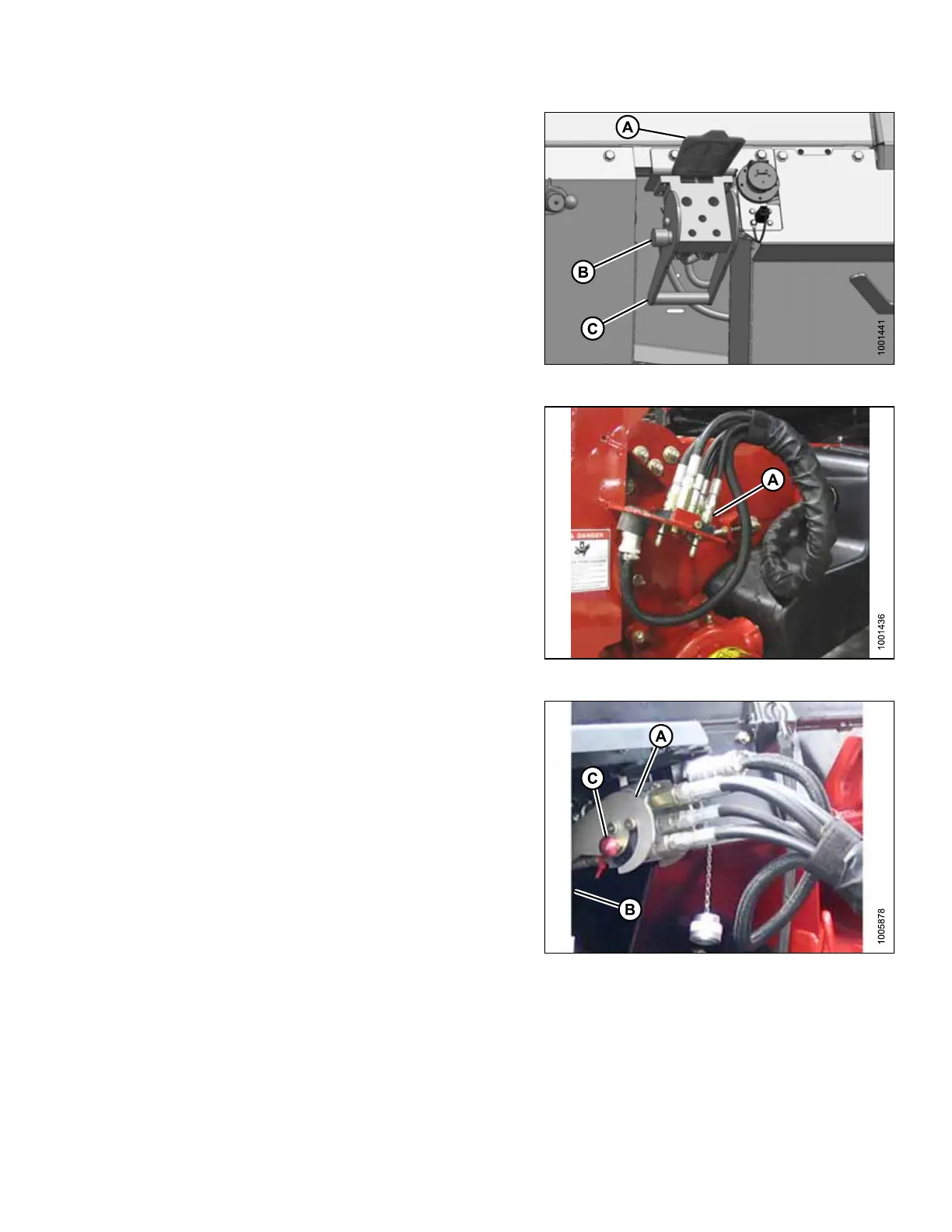

Figure 3.49: Adapter Receptacle
11. Open receptacle cover (A) on adapter.
12. Press lock button (B) and pull handle (C) to fully
open position.
13. Clean receptacle mating surfaces.
Figure 3.50: Combine Connectors
14. Remove hydraulic quick coupler (A) from combine and
clean mating surfaces.
Figure 3.51: Hydraulic Connection
15. Position coupler onto adapter receptacle (A) and push
handle (B) (not shown) to engage multicoupler pins into
receptacle.
16. Push handle (B) to closed position until lock button (C)
snaps out.
ASSEMBLING HEADER AND ADAPTER
