214325 38 Revision A

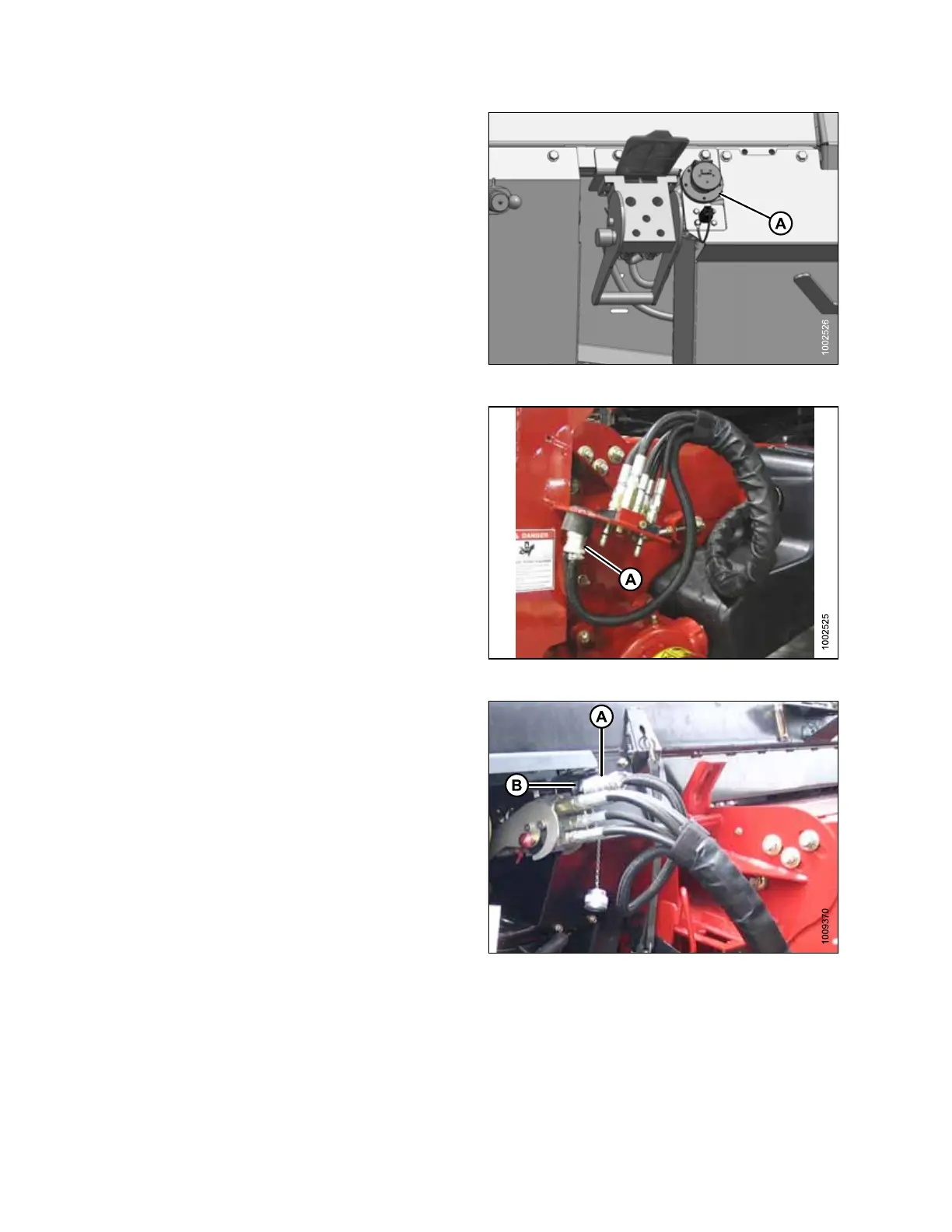

Figure 3.52: Electrical Receptacle
17. Remove cover from electrical receptacle (A). Ensure
receptacle is clean and has no signs of damage.
Figure 3.53: Combine Connectors
18. Remove electrical connector (A) from storage cup on
combine, and route it to adapter receptacle.
Figure 3.54: Electrical Connection
19. Align lugs on connector (A) with slots in receptacle (B),
push connector onto receptacle, and turn collar on
connector to lock it in place.
ASSEMBLING HEADER AND ADAPTER
