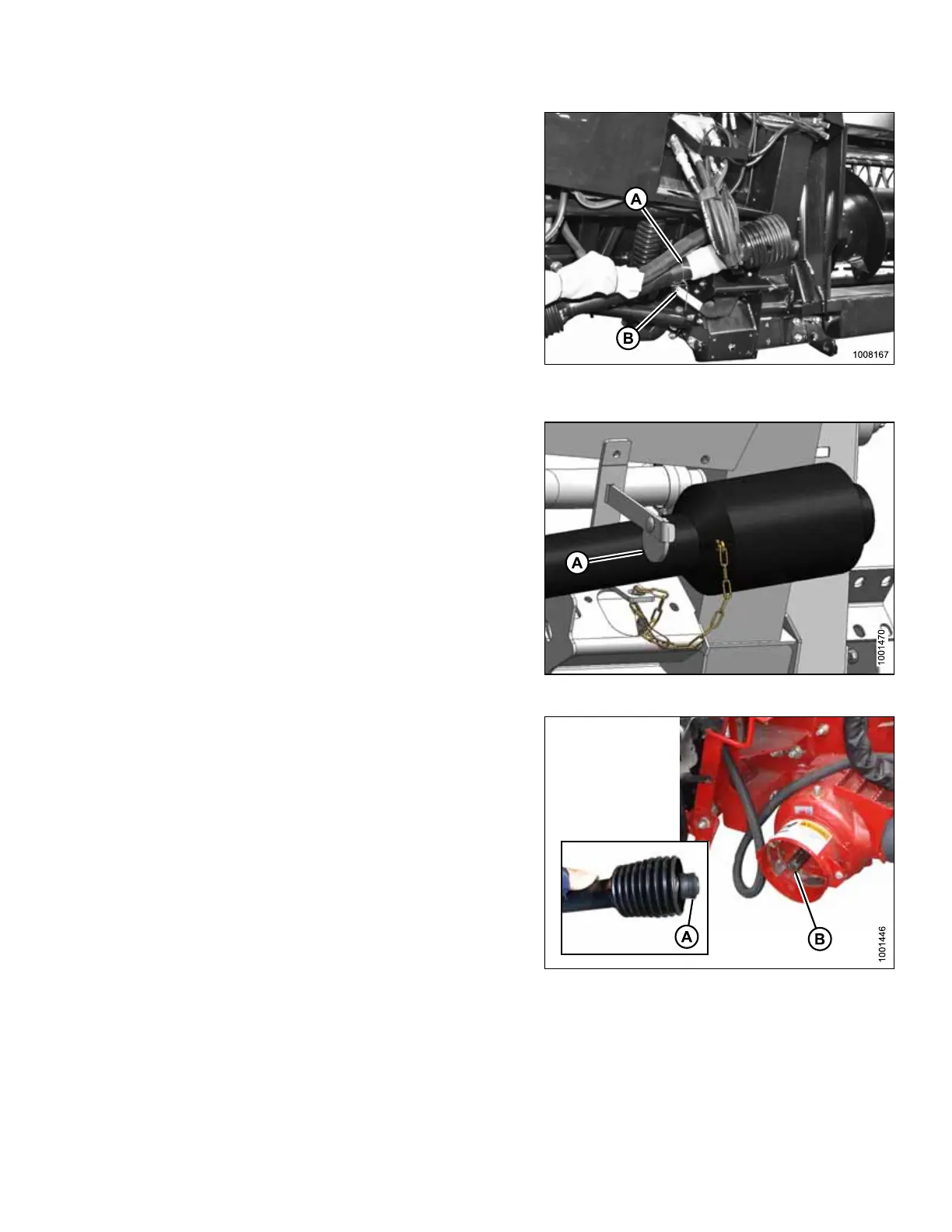

Figure 3.55: Shipping Wire on Driveline and
Float Lock Lever
20. Remove shipping wire (A) from driveline and float
lock lever (B).
Figure 3.56: Driveline Storage Hook
21. Rotate disc (A) on adapter driveline storage hook, and
remove driveline from hook.
Figure 3.57: Combine Output Shaft
22. Pull back collar (A) on end of driveline and push
driveline onto combine output shaft (B) until collar locks.
ASSEMBLING HEADER AND ADAPTER
