MacDon FFT FD75 - Setting up Combine Adapter

214325 11 Revision A

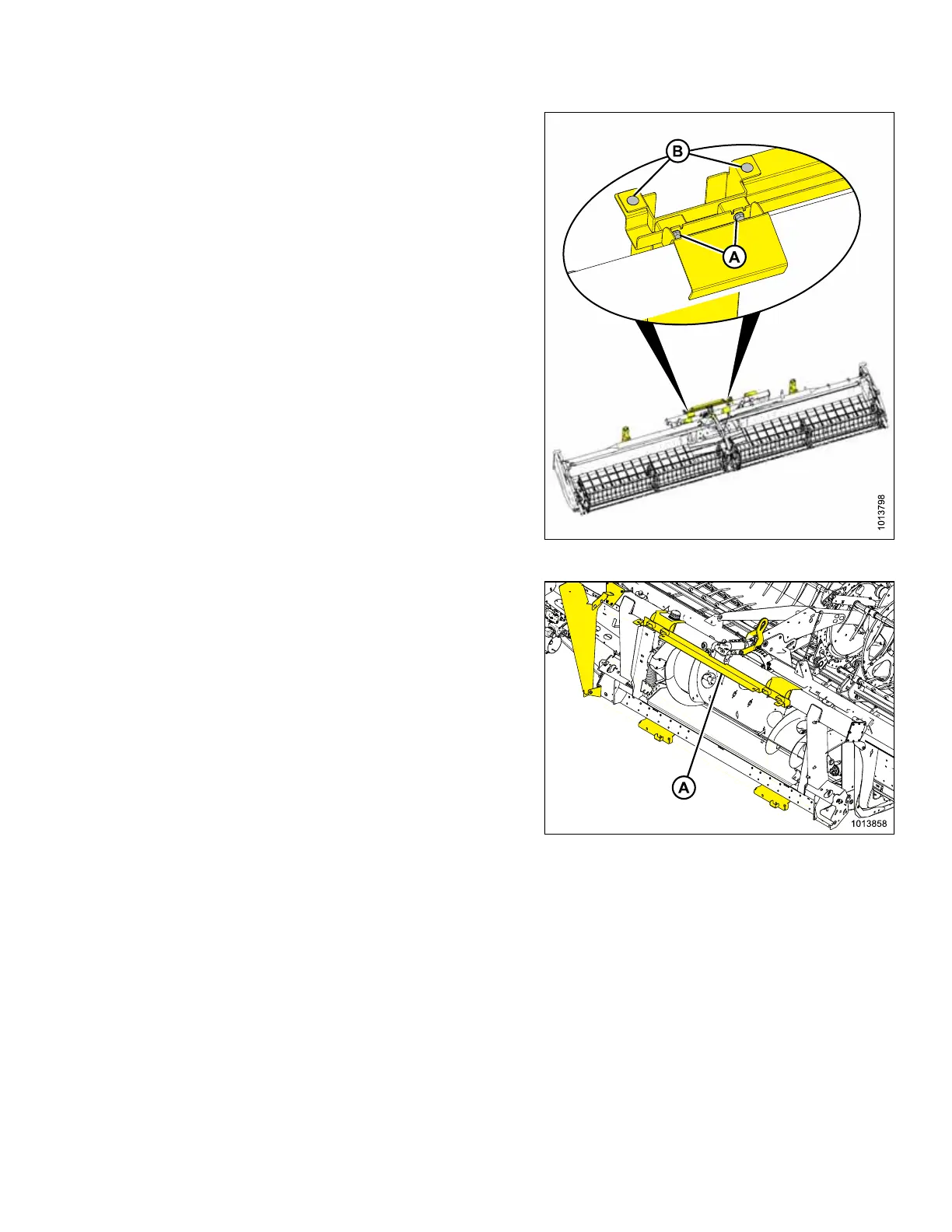

Figure 2.10: Fork Slider Channels
5. Remove two bolts (A) and then two bolts (B) from upper
brace. Repeat for opposite side.
6. Remove right and left fork slider channels.
Figure 2.11: Upper Brace
7. Remove upper brace (A).
UNLOADING HEADER AND ADAPTER
