214325 12 Revision A

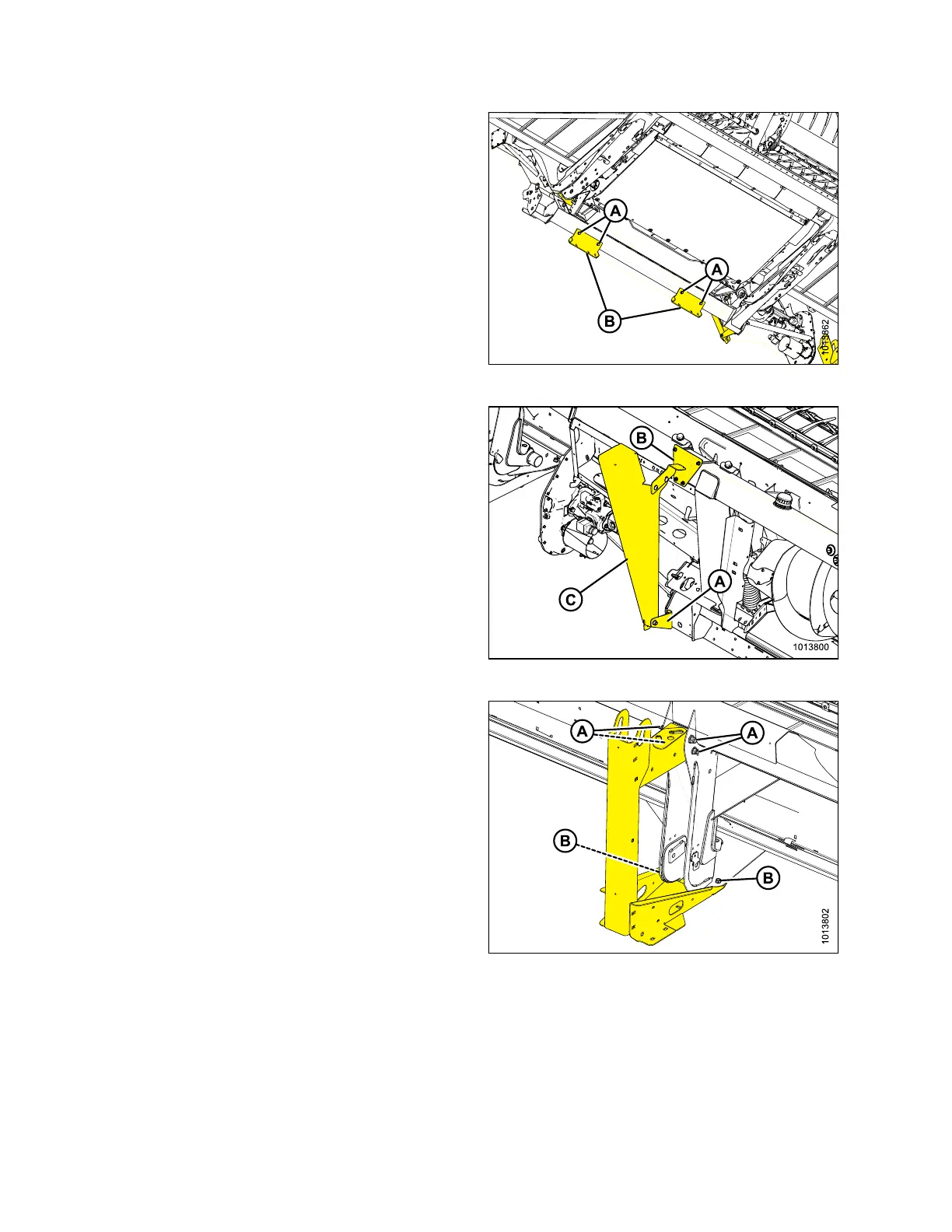

Figure 2.12: View from below Header
8. Remove four bolts (A), and remove braces (B) from
bottom of adapter.
Figure 2.13: Multicoupler Guard
9. Remove two bolts from bottom multicoupler guard
bracket (A).
10. Remove four bolts securing clamps at top bracket (B).
11. Remove multicoupler guard (C).
Figure 2.14: Shipping Stands at Outboard
Header Legs (Right Side Shown)
12. Remove four bolts (A) and two bolts (B) from shipping
stands at both outboard header legs. Remove stands.
UNLOADING HEADER AND ADAPTER
