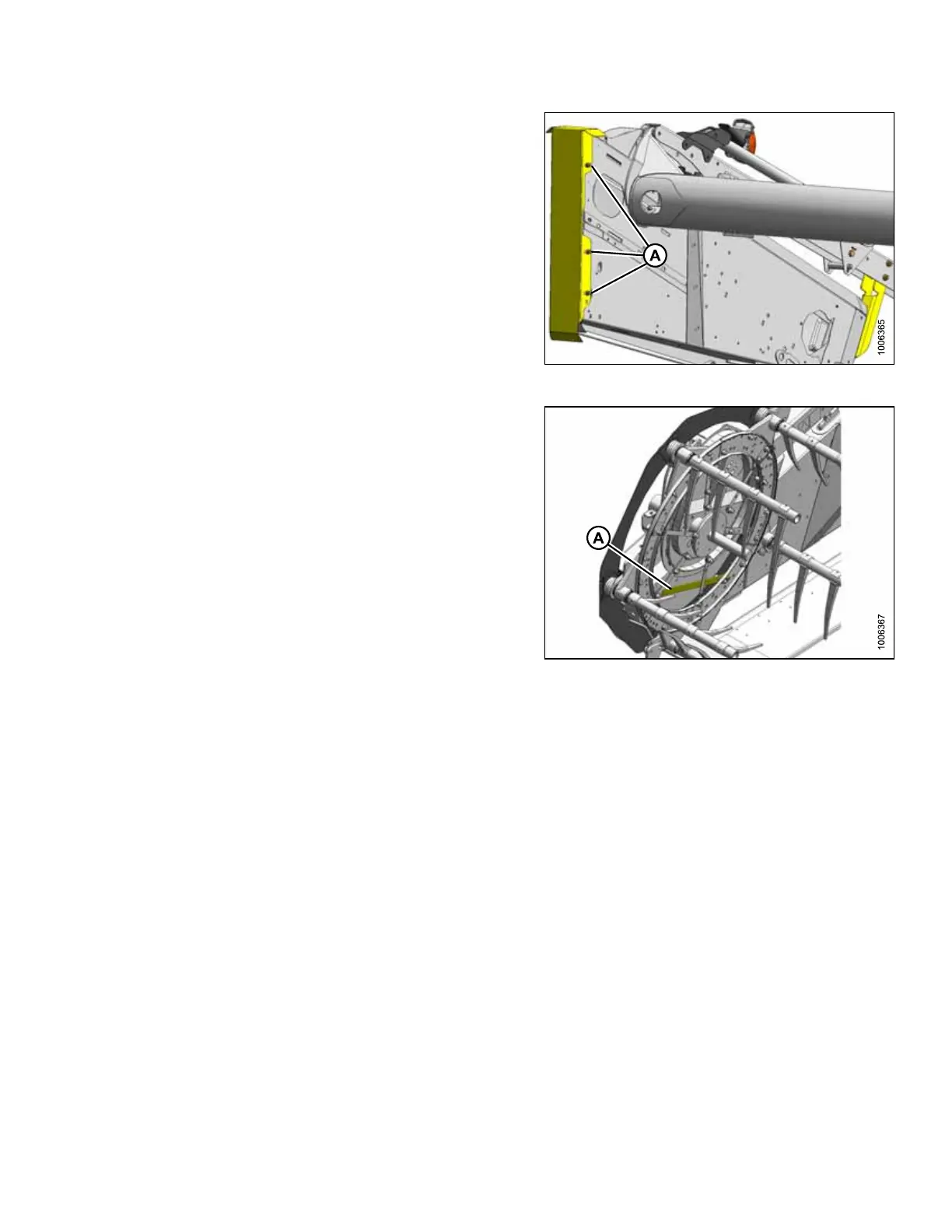

Figure 2.15: Endshield Guards
13. Loosen three bolts (A) in each endshield guard and
remove guards. Hardware can be removed when
header endshields are opened.
Figure 2.16: Reel Anti-Rotation Strap
14. Remove reel anti-rotation strap (A) between reel
and endsheet.
