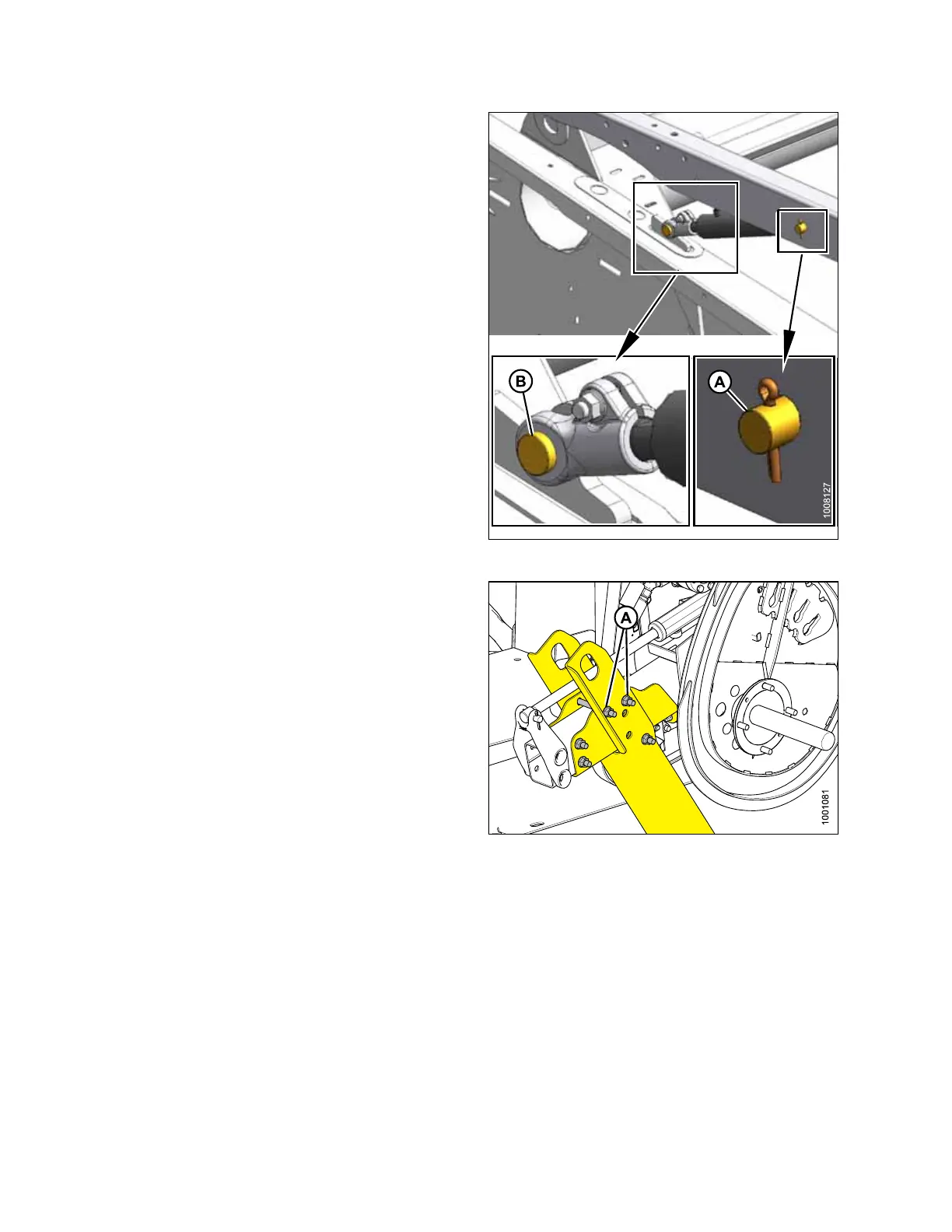

Figure 3.3: Reel Right Arm
4. Lift reel, and remove pins from endsheet and reel arm.
5. Align reel lift cylinder mounting holes with lug on
endsheet and hole in reel arm.
6. Secure cylinder to endsheet and reel arm with clevis
pins (A) and (B) as shown.
• Insert cotter pin into clevis pin (A) on OUTBOARD
side of reel arm
• Insert cotter pin into clevis pin (B) on INBOARD side
of endsheet
Figure 3.4: Reel Center Arm
7. Remove two top bolts (A) on center reel arm to allow
center reel arm to move.
